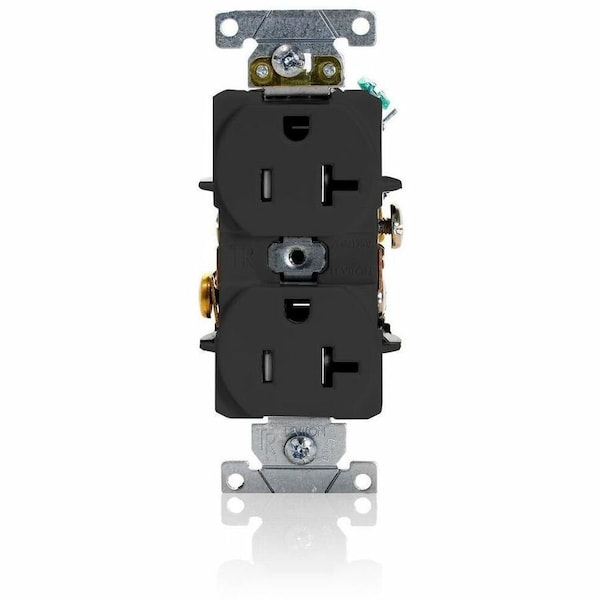

Duplex Outlet, Black 20A, 125V, TR
- Mfr # T5362-E
- Zoro # G622982255
product price:Â
$
18.25
/ea
Key Features
Face Plate Width
1.4 in
Wiring Method
Back/Side
NEMA Receptacle Configuration
5-20R
Features
Smooth Face
Connection Orientation
Straight
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- T5362-E
- Zoro #
- G622982255
- UPC #
- 078477895948
- Country of Origin
- Mexico
- Wiring Method
- Back/Side
- NEMA Receptacle Configuration
- 5-20R
- Features
- Smooth Face
- Connection Orientation
- Straight
- Voltage Rating
- 125V AC
- Contact Material
- Phosphor Bronze
- Number of Wires
- 3
- Number of Poles
- 2
- Current Rating
- 20 A
- Maximum Operating Temperature
- 75 Degrees C
- Housing Material
- PBT Polyester
- Number of Outlets
- 2
- Grounding
- Grounded
- Horsepower Rating
- 1 hp
- Wire Connection Type
- Screw Terminals
- Item
- Duplex Receptacle Outlet
- Receptacle Type
- Duplex
- Market
- Industrial
- Resistance Properties
- Tamper Resistant
- For Environment
- Food and Beverage, Oily/Greasy
- Standards
- CSA, FULS Marking, UL
- Housing Color
- Black
- Minimum Operating Temperature
- -40 Degrees C
- UL 94 Flammability Rating
- V-0
Description
Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Black, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-0
