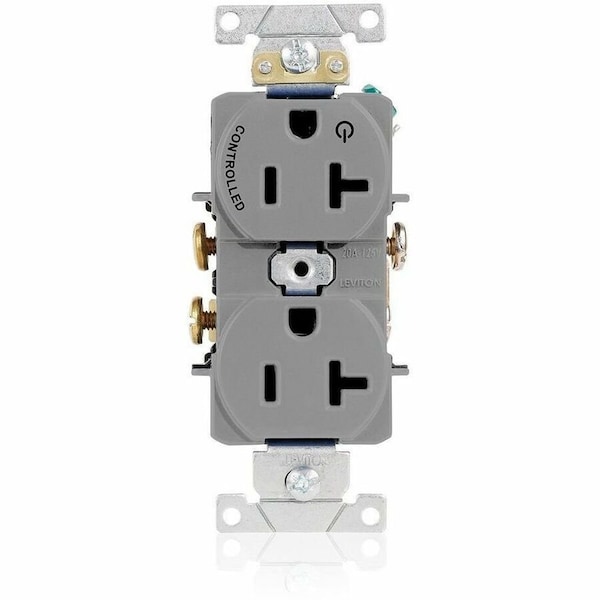

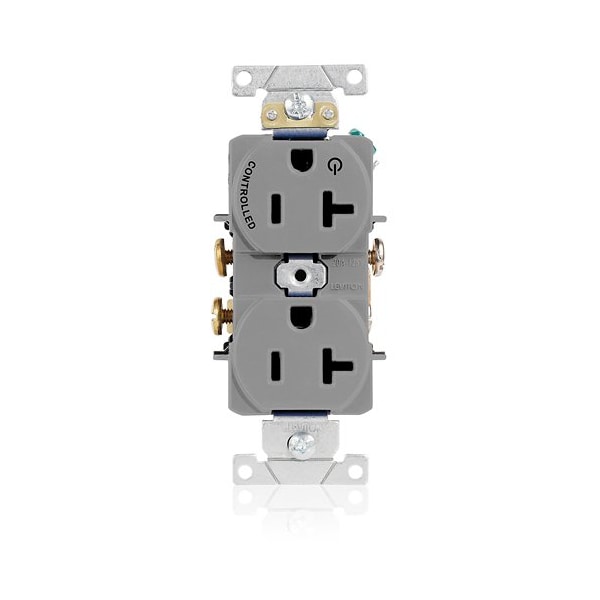

Duplex Outlet, Gray 20A 125V
- Mfr # 5362-S1G
- Zoro # G922982344
product price:Â
$
23.15
/ea
Key Features
Standards
CSA, FULS Marking, UL
Voltage Rating
125V AC
Number of Outlets
2
UL 94 Flammability Rating
V-2
Number of Poles
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 5362-S1G
- Zoro #
- G922982344
- UPC #
- 078477711392
- Country of Origin
- Mexico
- Standards
- CSA, FULS Marking, UL
- Voltage Rating
- 125V AC
- Number of Outlets
- 2
- UL 94 Flammability Rating
- V-2
- Number of Poles
- 2
- NEMA Receptacle Configuration
- 5-20R
- Features
- Smooth Face
- Wiring Method
- Back/Side
- Wire Connection Type
- Screw Terminals
- Horsepower Rating
- 1 hp
- Market
- Industrial
- Grounding
- Grounded
- Current Rating
- 20 A
- Receptacle Type
- Duplex
- Contact Material
- Brass
- For Environment
- Food and Beverage, Oily/Greasy
- Housing Color
- Gray
- Housing Material
- Nylon
- Connection Orientation
- Straight
- Maximum Operating Temperature
- 75 Degrees C
- Minimum Operating Temperature
- -40 Degrees C
- Number of Wires
- 3
- Item
- Duplex Receptacle Outlet
Dimensions
- Maximum Wire Size
- 10 AWG
- Minimum Wire Size
- 14 AWG
- Fits Chest Size
- Smooth Face
Description
Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Gray, Housing Material Nylon, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-2
