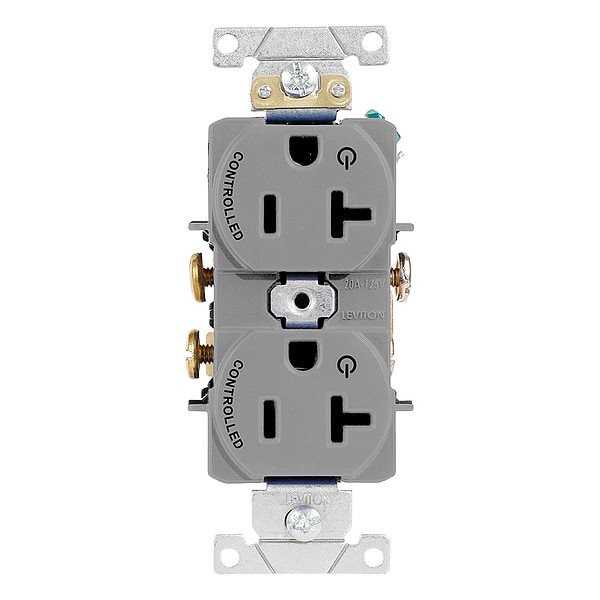

Duplex Outlet, Gray 20A 125V

  • Mfr # 5362-S2G
  • Zoro # G522982256
product price:
$
25.45
/ea

Key Features

Minimum Operating Temperature
-40 Degrees C
Connection Orientation
Straight
Horsepower Rating
1 hp
Number of Outlets
2
Current Rating
20 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5362-S2G
Zoro #
G522982256
UPC #
078477711514
Country of Origin
Mexico
Minimum Operating Temperature
-40 Degrees C
Connection Orientation
Straight
Horsepower Rating
1 hp
Number of Outlets
2
Current Rating
20 A
Housing Color
Gray
Wire Connection Type
Screw Terminals
Number of Wires
3
Voltage Rating
125V AC
Market
Industrial
Receptacle Type
Duplex
Contact Material
Brass
Features
Smooth Face, Two Outlets Marked "Controlled"
Standards
CSA, FULS Marking, UL
Wiring Method
Back/Side
NEMA Receptacle Configuration
5-20R
UL 94 Flammability Rating
V-2
Grounding
Grounded
For Environment
Food and Beverage, Oily/Greasy
Item
Duplex Receptacle Outlet
Housing Material
Nylon
Maximum Operating Temperature
75 Degrees C
Number of Poles
2

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Fits Chest Size
Smooth Face, Two Outlets Marked "Controlled"

Description

Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Gray, Housing Material Nylon, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-2
