Shop LEVITON

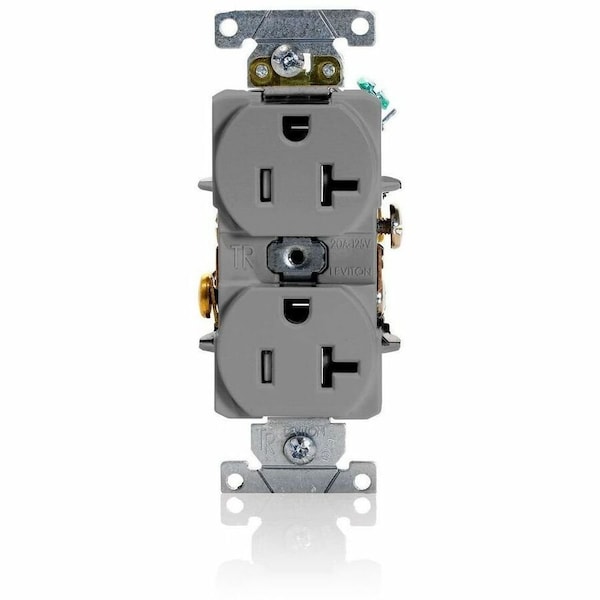

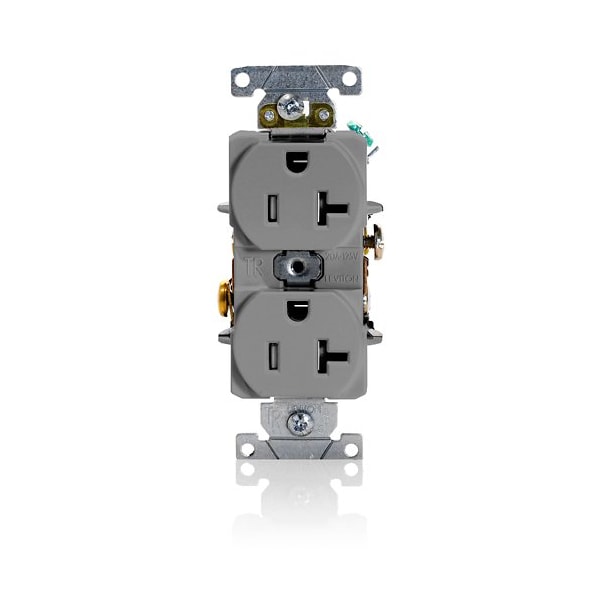

Duplex Outlet, Gray 20A, 125V, TR

  • Mfr # T5362-GY

  • Zoro # G922982276

product price:
$
18.25
/ea

Key Features

For Environment
Food and Beverage, Oily/Greasy
Voltage Rating
125V AC
Features
Smooth Face
Standards
CSA, FULS Marking, UL
Connection Orientation
Straight
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
T5362-GY
Zoro #
G922982276
UPC #
078477895399
Country of Origin
Mexico
For Environment
Food and Beverage, Oily/Greasy
Voltage Rating
125V AC
Features
Smooth Face
Standards
CSA, FULS Marking, UL
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees C
NEMA Receptacle Configuration
5-20R
Grounding
Grounded
Market
Industrial
Number of Outlets
2
Current Rating
20 A
Item
Duplex Receptacle Outlet
Number of Wires
3
Horsepower Rating
1 hp
Number of Poles
2
Wiring Method
Back/Side
Receptacle Type
Duplex
Contact Material
Phosphor Bronze
Maximum Operating Temperature
75 Degrees C
Housing Material
PBT Polyester
Resistance Properties
Tamper Resistant
Housing Color
Gray
Wire Connection Type
Screw Terminals
UL 94 Flammability Rating
V-0

Description

Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Gray, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-0
