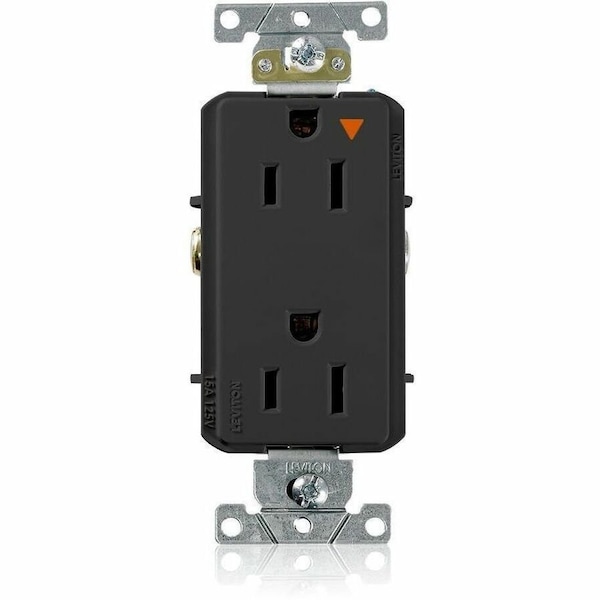

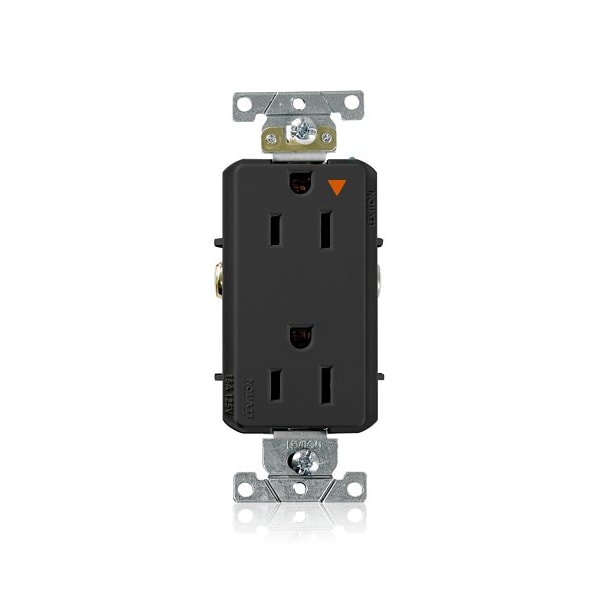

Duplex Outlet, Iso Grd, Black, 15A, 125V
Mfr # 16262-EIG
Zoro # G222982303
product price:Â
$
23.15
/ea
Key Features
Mount Hole Center-to-Center Height
3.3 in
Number of Outlets
2
Minimum Operating Temperature
-40 Degrees C
Housing Material
PBT Polyester
UL 94 Flammability Rating
V-0
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16262-EIG
- Zoro #
- G222982303
- UPC #
- 078477909058
- Country of Origin
- Mexico
Dimensions
- Mount Hole Center-to-Center Height
- 3.3 in
- Face Plate Width
- 1.6 in
- Minimum Wire Size
- 14 AWG
- Maximum Wire Size
- 10 AWG
- Face Plate Height
- 2.8 in
- Overall Depth
- 1.1 in
Description
Isolated Ground Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Housing Color Black, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1/2 hp, UL 94 Flammability Rating V-0
