Shop LEVITON

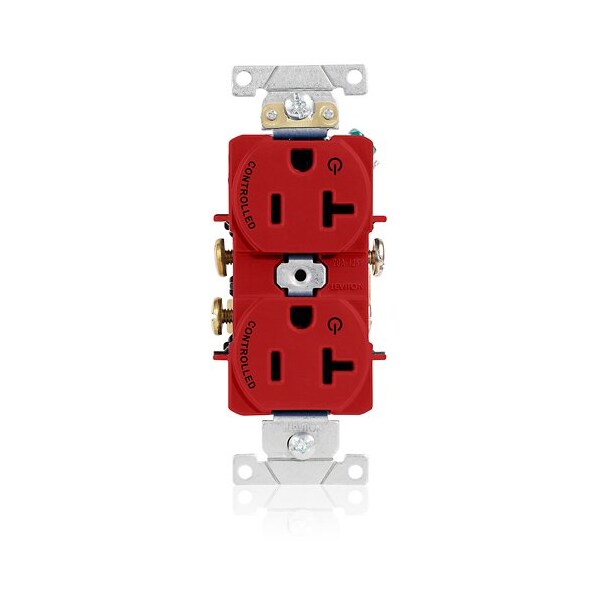

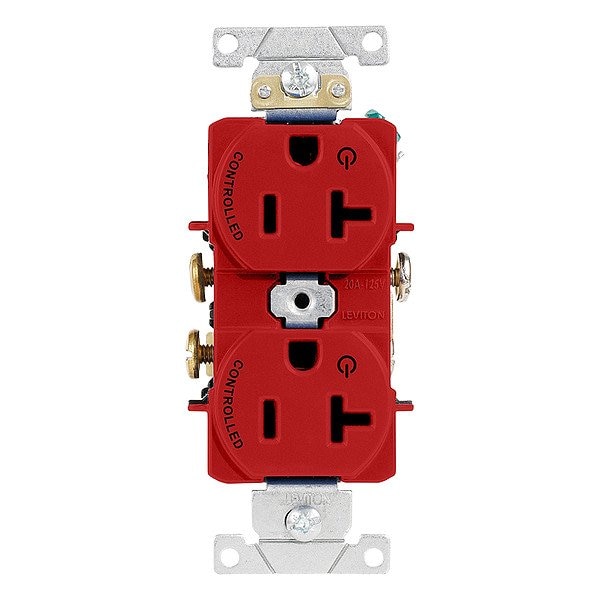

Duplex Outlet, Red 20A 125V

  • Mfr # 5362-S2R
  • Zoro # G722982148
product price:
$
23.25
/ea

Key Features

Voltage Rating
125V AC
Minimum Wire Size
14 AWG
Standards
CSA, FULS Marking, UL
Number of Poles
2
Maximum Wire Size
10 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5362-S2R
Zoro #
G722982148
UPC #
078477711477
Country of Origin
Mexico
Voltage Rating
125V AC
Standards
CSA, FULS Marking, UL
Number of Poles
2
UL 94 Flammability Rating
V-2
Current Rating
20 A
Maximum Operating Temperature
75 Degrees C
Housing Material
Nylon
Number of Wires
3
Wiring Method
Back/Side
NEMA Receptacle Configuration
5-20R
For Environment
Food and Beverage, Oily/Greasy
Features
Smooth Face, Two Outlets Marked "Controlled"
Market
Industrial
Grounding
Grounded
Receptacle Type
Duplex
Horsepower Rating
1 hp
Minimum Operating Temperature
-40 Degrees C
Item
Duplex Receptacle/Oultet, 20 Amp
Wire Connection Type
Screw Terminals
Contact Material
Brass
Housing Color
Red
Connection Orientation
Straight
Number of Outlets
2

Description

Duplex Receptacle/Oultet, 20 Amp, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Red, Housing Material Nylon, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-2
