Shop LEVITON

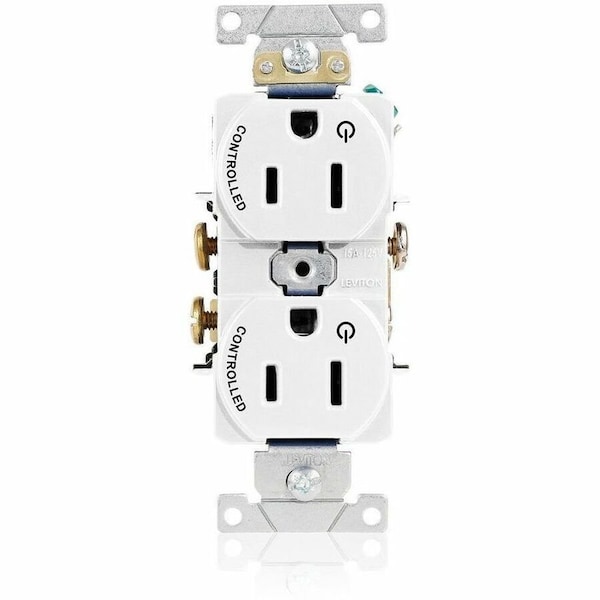

Duplex Outlet, White 15A 125V

  • Mfr # 5262-S2W
  • Zoro # G022982268

product price:
$
18.45
/ea

Key Features

Minimum Wire Size
14 AWG
UL 94 Flammability Rating
V-2
Features
Smooth Face
Maximum Wire Size
10 AWG
Market
Industrial
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5262-S2W
Zoro #
G022982268
UPC #
078477711675
Country of Origin
Mexico
UL 94 Flammability Rating
V-2
Features
Smooth Face
Market
Industrial
Grounding
Grounded
Wire Connection Type
Screw Terminals
For Environment
Food and Beverage, Oily/Greasy
Number of Wires
3
Standards
CSA, FULS Marking, UL
Horsepower Rating
1/2 hp
Housing Color
White
Connection Orientation
Straight
Number of Poles
2
Voltage Rating
125V AC
Receptacle Type
Duplex
Contact Material
Brass
Number of Outlets
2
Minimum Operating Temperature
-40 Degrees C
Housing Material
Nylon
Wiring Method
Back/Side
NEMA Receptacle Configuration
5-15R
Maximum Operating Temperature
75 Degrees C
Current Rating
15 A
Item
Duplex Receptacle Outlet

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Fits Chest Size
Smooth Face

Description

Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Housing Color White, Housing Material Nylon, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1/2 hp, UL 94 Flammability Rating V-2
