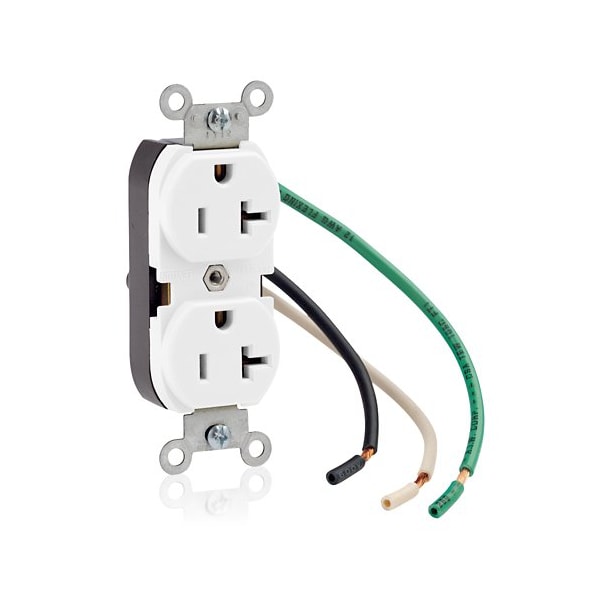

Duplex Outlet, White 20A, 125V, TR
Mfr # 5340-W
Zoro # G722982254
product price:Â
$
10.29
/ea
Key Features
Horsepower Rating
1 hp
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees C
Number of Outlets
2
Connection Orientation
Straight
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5340-W
- Zoro #
- G722982254
- UPC #
- 078477236697
- Country of Origin
- Mexico
Details
- Horsepower Rating
- 1 hp
- Housing Material
- Nylon
- Minimum Operating Temperature
- -40 Degrees C
- Number of Outlets
- 2
- Connection Orientation
- Straight
- Standards
- CSA, FULS Marking, UL
- Wire Connection Type
- Screw Terminals
- Number of Poles
- 2
- Maximum Operating Temperature
- 60 Degrees C
- Resistance Properties
- Tamper Resistant
- NEMA Receptacle Configuration
- 5-20R
- Number of Wires
- 3
- UL 94 Flammability Rating
- V-2
- Housing Color
- White
- Receptacle Type
- Duplex
- For Environment
- Food and Beverage, Oily/Greasy
- Voltage Rating
- 125V AC
- Market
- Commercial
- Grounding
- Grounded
- Current Rating
- 20 A
- Features
- Smooth Face
- Item
- Duplex Receptacle Outlet
Description
Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color White, Housing Material Nylon, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Horsepower Rating 1 hp, UL 94 Flammability Rating V-2
