Shop LEVITON

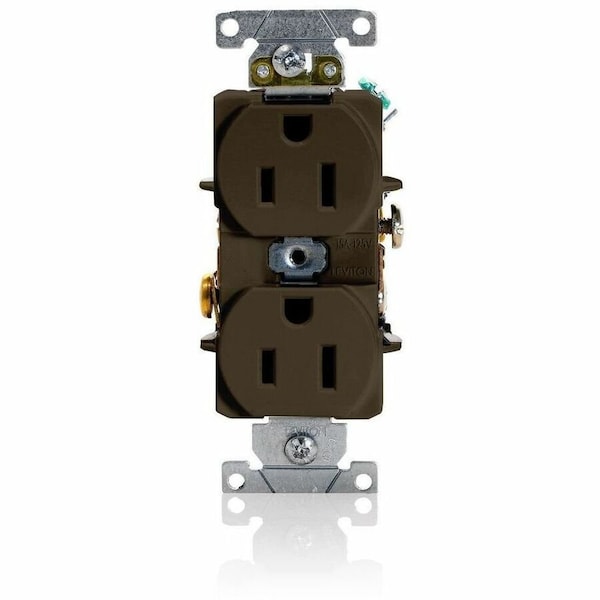

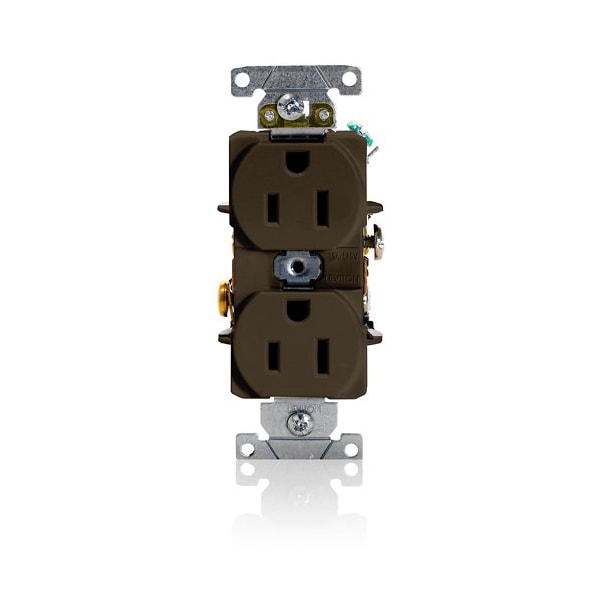

Duplex Receptacle Outlet, 15A, Brown, 125V

  • Mfr # 5262-S

  • Zoro # G322982302

product price:
$
5.39
/ea

Key Features

Face Plate Width
1.4 in
Grounding
Grounded
Minimum Operating Temperature
-40 Degrees C
Resistance Properties
Impact Resistant
Face Plate Height
2.8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5262-S
Zoro #
G322982302
UPC #
078477141106
Country of Origin
Mexico

Dimensions

Face Plate Width
1.4 in
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in

Details

Grounding
Grounded
Minimum Operating Temperature
-40 Degrees C
Resistance Properties
Impact Resistant
Maximum Operating Temperature
75 Degrees C
For Environment
Food and Beverage, Oily/Greasy
Number of Outlets
2
Features
Smooth Face
Connection Orientation
Straight
UL 94 Flammability Rating
V-0
Market
Industrial
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Item
Duplex Receptacle Outlet
Receptacle Type
Duplex
Horsepower Rating
1/2 hp
Contact Material
Phosphor Bronze
Wire Connection Type
Screw Terminals
Wiring Method
Back/Side
Housing Material
PBT Polyester
Number of Poles
2
Number of Wires
3
Voltage Rating
125V AC
Standards
CSA, FULS Marking, UL
Housing Color
Brown

Description

Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Housing Color Brown, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1/2 hp, UL 94 Flammability Rating V-0
