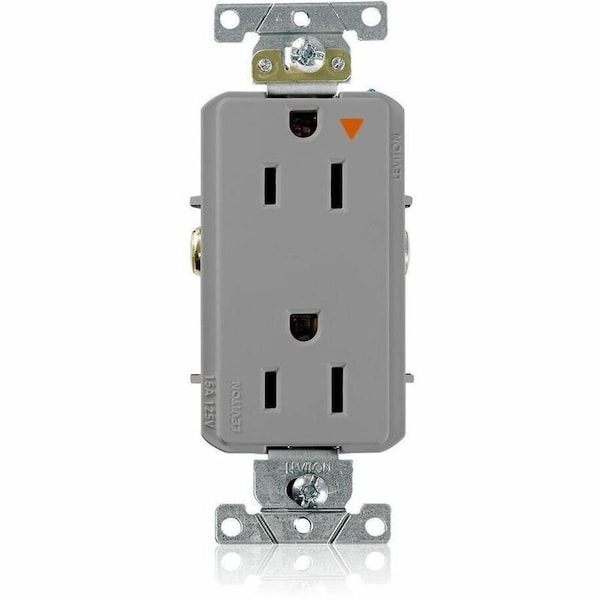

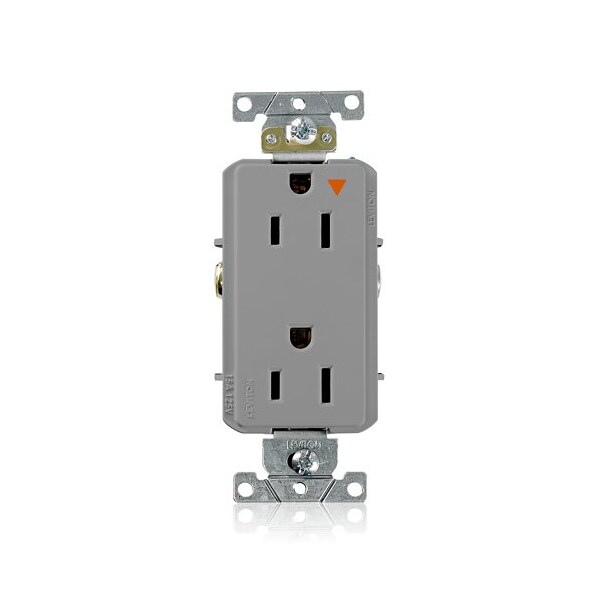

Duplex Receptacle Outlet, 15A, Gray, 125V
- Mfr # 16262-GIG
- Zoro # G322982104
product price:Â
$
23.15
/ea
Key Features
Housing Material
PBT Polyester
Receptacle Type
Duplex
Minimum Wire Size
14 AWG
Number of Poles
2
Maximum Operating Temperature
75 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16262-GIG
- Zoro #
- G322982104
- UPC #
- 078477908990
- Country of Origin
- Mexico
- Housing Material
- PBT Polyester
- Receptacle Type
- Duplex
- Number of Poles
- 2
- Maximum Operating Temperature
- 75 Degrees C
- For Environment
- Food and Beverage, Oily/Greasy
- UL 94 Flammability Rating
- V-0
- NEMA Receptacle Configuration
- 5-15R
- Wiring Method
- Back/Side
- Item
- Isolated Ground Duplex Receptacle Outlet
- Voltage Rating
- 125V AC
- Standards
- CSA, FULS Marking, UL
- Minimum Operating Temperature
- -40 Degrees C
- Contact Material
- Phosphor Bronze
- Grounding
- Grounded
- Number of Wires
- 3
- Horsepower Rating
- 1/2 hp
- Wire Connection Type
- Screw Terminals
- Current Rating
- 15 A
- Housing Color
- Gray
- Features
- Smooth Face
- Number of Outlets
- 2
- Market
- Industrial
- Connection Orientation
- Straight
Dimensions
- Minimum Wire Size
- 14 AWG
- Overall Depth
- 1.1 in
- Mount Hole Center-to-Center Height
- 3.3 in
- Maximum Wire Size
- 10 AWG
- Face Plate Width
- 1.6 in
- Face Plate Height
- 2.8 in
- Fits Chest Size
- Smooth Face
Description
Isolated Ground Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Housing Color Gray, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1/2 hp, UL 94 Flammability Rating V-0
