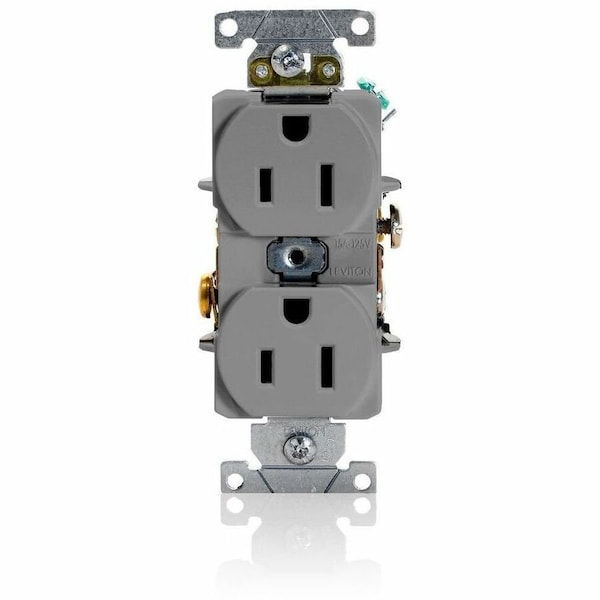

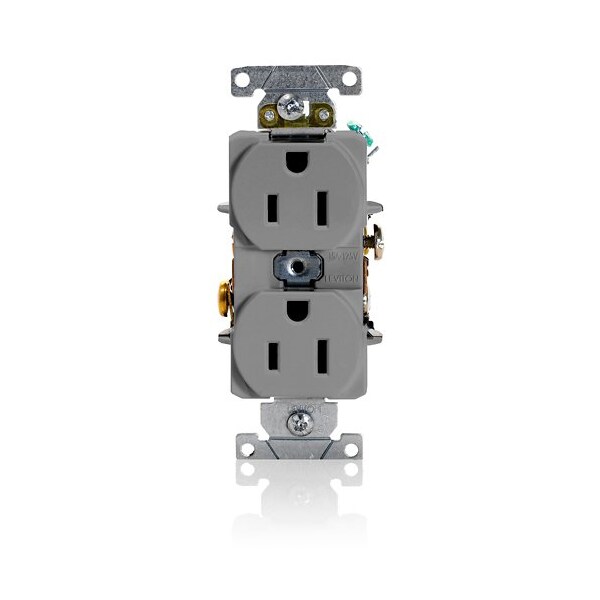

Duplex Receptacle Outlet, 15A, Gray, 125V
Mfr # 5252-GY
Zoro # G422982196
product price:Â
$
5.49
/ea
Key Features
Market
Industrial
Receptacle Type
Duplex
Number of Wires
3
Contact Material
Phosphor Bronze
Horsepower Rating
1/2 hp
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 5252-GY
- Zoro #
- G422982196
- UPC #
- 078477819579
- Country of Origin
- Mexico
- Market
- Industrial
- Receptacle Type
- Duplex
- Number of Wires
- 3
- Contact Material
- Phosphor Bronze
- Horsepower Rating
- 1/2 hp
- Wire Connection Type
- Screw Terminals
- Maximum Operating Temperature
- 75 Degrees C
- Grounding
- Grounded
- Housing Material
- PBT Polyester
- Features
- Smooth Face
- Number of Outlets
- 2
- Standards
- CSA, FULS Marking, UL
- Wiring Method
- Back/Side
- Connection Orientation
- Straight
- Minimum Operating Temperature
- -40 Degrees C
- Current Rating
- 15 A
- UL 94 Flammability Rating
- V-2
- Housing Color
- Gray
- Item
- Duplex Receptacle Outlet
- For Environment
- Food and Beverage, Oily/Greasy
- NEMA Receptacle Configuration
- 5-15R
- Number of Poles
- 2
- Resistance Properties
- Impact Resistant
- Voltage Rating
- 125V AC
Description
Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Housing Color Gray, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1/2 hp, UL 94 Flammability Rating V-2
