Shop LEVITON

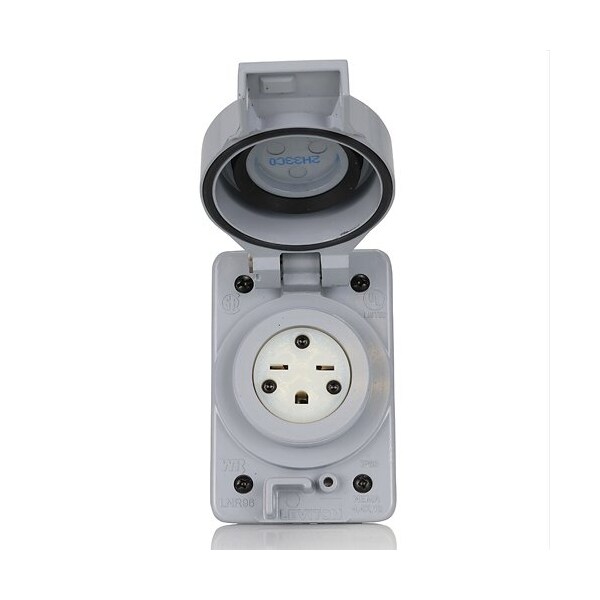

StrghtBladeRcptcl, 15A, 250VAC, Gry, Alum

  • Mfr # LNR96-2

  • Zoro # G822728790

product price:
$
158.99
/ea
Free Shipping & Returns

Key Features

Surge Protection
No
Mount Type
Flush
Number of Wires
3
Grade
General Use
Flange Type
Flanged
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LNR96-2
Zoro #
G822728790
UPC #
-
Country of Origin
Mexico

Dimensions

Flange Width
4.5 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Width
1.9 in

Details

Surge Protection
No
Mount Type
Flush
Number of Wires
3
Grade
General Use
Flange Type
Flanged
NEMA Enclosure Rating
6
Standards
ANSI C-73, CSA C22.2 No. 42, IEC, NEMA WD-6, NOM-ANCE, UL 498
Current Rating
15 A
Wire Connection Type
Screw Terminals
NEMA Receptacle Configuration
6-15R
Housing Material
Aluminum
Item
Straight Blade Receptacle
Number of Outlets
1
Flange Shape
Rectangular
Receptacle Type
Single
Maximum Operating Temperature
60 Degrees C
Number of Poles
2
Grounding
Grounded
AFCI
No
Wiring Method
Back
For Environment
Wet
Market
Commercial, Industrial
Phase
Single
Horsepower Rating
1 hp
Minimum Operating Temperature
-40 Degrees C
Number of Wall Plates Included
1
Features
High-Performance TPV Components Withstand Extreme Temperatures, are UV Stabilized and Resistant to Water, Oils, and Other Chemicals, Industry Exclusive Variable Adjust, Watertight Strain Relief System Speeds Assembly and Provides More Reliable Performance Than Conventional Rubber Boot Type Systems, Plugs and Connectors are Submersible When Mated or with Protective Cap Installed (Connector Only)
Polarized
Yes
Housing Color
Gray
Cover Type
Flip-Up Cover
Shrouded
No
GFCI
No
Contact Material
Brass
Voltage Rating
250V AC
IP Rating
IP66, IP67, IP68, IP69K
Number of Gangs
1

Description

Straight Blade Receptacle, Cover Type Flip-Up Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Aluminum, Mount Type Flush, NEMA Enclosure Rating 6, NEMA Receptacle Configuration 6-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable, Standards ANSI C-73, CSA C22.2 No. 42, IEC, NEMA WD-6, NOM-ANCE, UL 498
