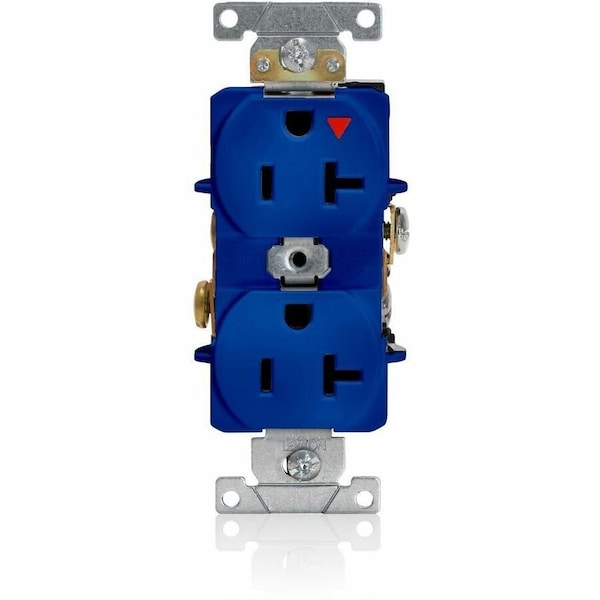

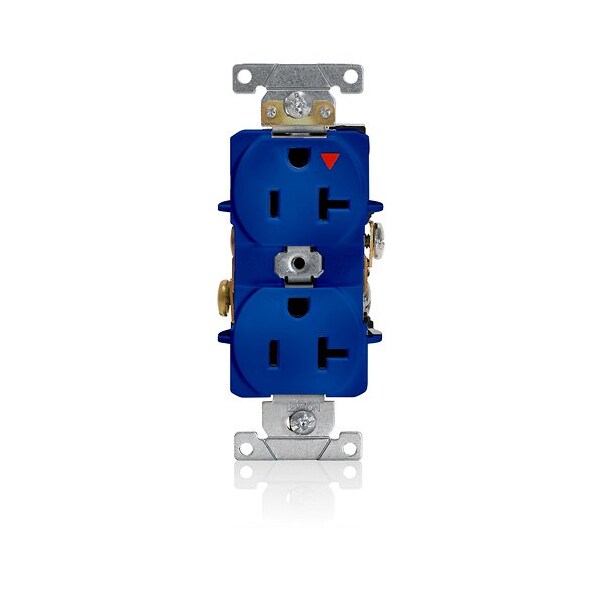

Duplex Receptacle Outlet, 20A, Blue, 125V
Mfr # 5362-BIG
Zoro # G722982285
product price:Â
$
9.49
/ea
Key Features
Housing Color
Blue
Housing Material
PBT Polyester
Wiring Method
Back/Side
Horsepower Rating
1 hp
Resistance Properties
Impact Resistant
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 5362-BIG
- Zoro #
- G722982285
- UPC #
- 078477053881
- Country of Origin
- Mexico
- Housing Color
- Blue
- Housing Material
- PBT Polyester
- Wiring Method
- Back/Side
- Horsepower Rating
- 1 hp
- Resistance Properties
- Impact Resistant
- Number of Outlets
- 2
- Number of Poles
- 2
- Voltage Rating
- 125V AC
- NEMA Receptacle Configuration
- 5-20R
- Maximum Operating Temperature
- 75 Degrees C
- Standards
- CSA, FULS Marking, UL
- Features
- Smooth Face
- Item
- Isolated Ground Duplex Receptacle Outlet
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Minimum Operating Temperature
- -40 Degrees C
- Current Rating
- 20 A
- Grounding
- Grounded
- Receptacle Type
- Duplex
- Market
- Industrial
- For Environment
- Food and Beverage, Oily/Greasy
- UL 94 Flammability Rating
- V-0
- Contact Material
- Phosphor Bronze
- Connection Orientation
- Straight
Description
Isolated Ground Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Blue, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-0
