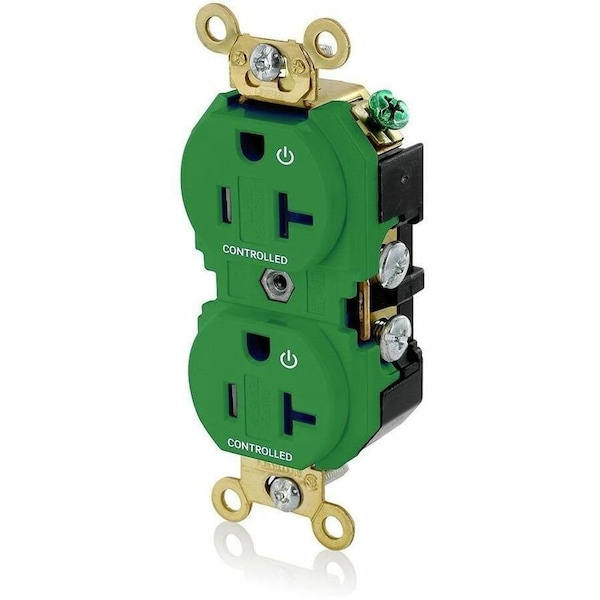

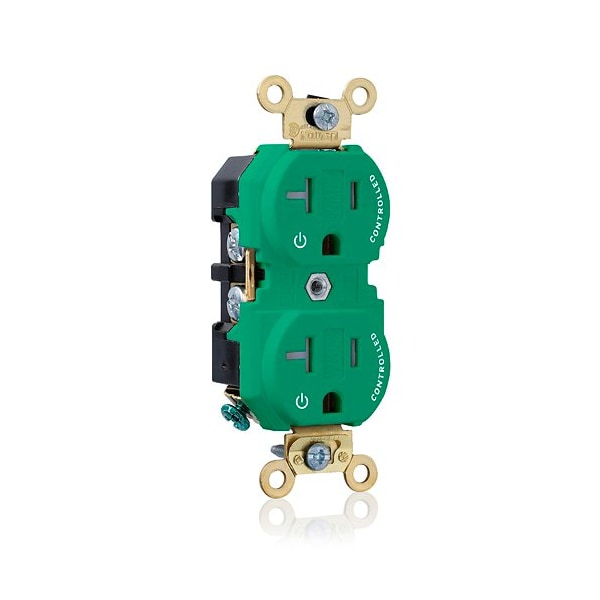

Duplex Receptacle Outlet, 20A, Green, 125V
Mfr # 5362-2PN
Zoro # G122982069
product price:Â
$
28.89
/ea
Key Features
Minimum Operating Temperature
-40 Degrees C
Resistance Properties
Tamper Resistant
Face Plate Height
2.6 in
Voltage Rating
125V AC
Minimum Wire Size
14 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 5362-2PN
- Zoro #
- G122982069
- UPC #
- 078477731246
- Country of Origin
- Mexico
- Minimum Operating Temperature
- -40 Degrees C
- Resistance Properties
- Tamper Resistant
- Voltage Rating
- 125V AC
- Receptacle Type
- Duplex
- Horsepower Rating
- 1 hp
- UL 94 Flammability Rating
- V-2
- Grounding
- Grounded
- Current Rating
- 20 A
- Wiring Method
- Back/Side
- Housing Material
- Nylon
- Connection Orientation
- Straight
- Features
- Smooth Face
- Standards
- CSA, FULS Marking, UL
- Wire Connection Type
- Screw Terminals
- Market
- Industrial
- NEMA Receptacle Configuration
- 5-20R
- Maximum Operating Temperature
- 75 Degrees C
- Item
- Duplex Receptacle Outlet
- Number of Poles
- 2
- Contact Material
- Brass
- Number of Wires
- 3
- For Environment
- Food and Beverage, Oily/Greasy
- Number of Outlets
- 2
- Housing Color
- Green
Description
Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Green, Housing Material Nylon, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-2
