Shop LEVITON

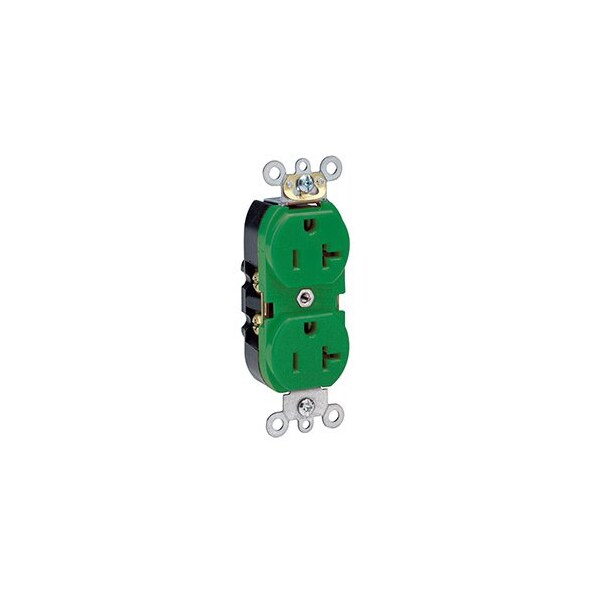

Duplex Receptacle/Oultet, 20 Amp

  • Mfr # 5362-GNS

  • Zoro # G822982352

product price:
$
5.15
/ea

Key Features

Voltage Rating
125V AC
Horsepower Rating
1 hp
Maximum Operating Temperature
60 Degrees C
Standards
CSA, FULS Marking, UL
Housing Color
Green
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5362-GNS
Zoro #
G822982352
UPC #
078477680568
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Voltage Rating
125V AC
Horsepower Rating
1 hp
Maximum Operating Temperature
60 Degrees C
Standards
CSA, FULS Marking, UL
Housing Color
Green
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees C
Resistance Properties
Tamper Resistant
Wiring Method
Back/Side
Current Rating
20 A
Housing Material
Nylon
Number of Wires
3
Number of Poles
2
Item
Duplex Receptacle/Oultet, 20 Amp
NEMA Receptacle Configuration
5-20R
Grounding
Grounded
Market
Industrial
Number of Outlets
2
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Receptacle Type
Duplex
For Environment
Food and Beverage, Oily/Greasy
Features
Straight Blade

Description

Duplex Receptacle/Oultet, 20 Amp, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Green, Housing Material Nylon, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-2
