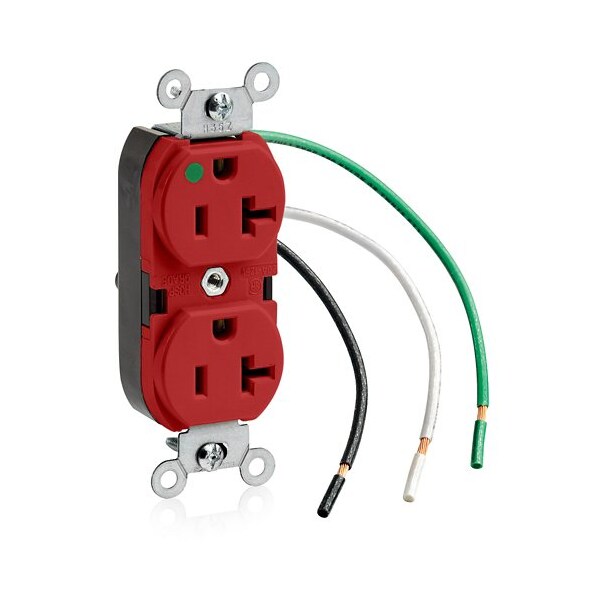

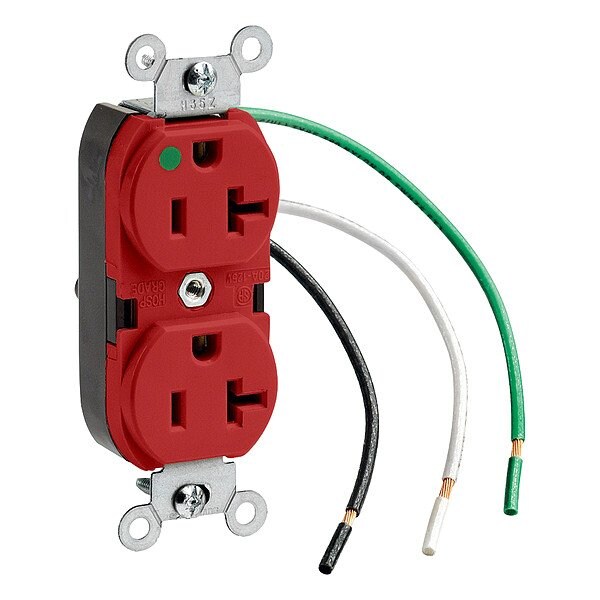

Duplex Receptacle/Oultet, 20 Amp
Mfr # 8300-LR
Zoro # G822982116
product price:Â
$
22.09
/ea
Key Features
Market
Commercial
Horsepower Rating
1 hp
Contact Material
Phosphor Bronze
Wire Connection Type
Screw Terminals
Housing Material
Nylon
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8300-LR
- Zoro #
- G822982116
- UPC #
- 078477284025
- Country of Origin
- Mexico
Details
- Market
- Commercial
- Horsepower Rating
- 1 hp
- Contact Material
- Phosphor Bronze
- Wire Connection Type
- Screw Terminals
- Housing Material
- Nylon
- UL 94 Flammability Rating
- V-2
- Grounding
- Grounded
- Current Rating
- 20 A
- Grade
- Hospital Grade
- For Environment
- Food and Beverage, Oily/Greasy
- Voltage Rating
- 125V AC
- Item
- Duplex Receptacle/Oultet, 20 Amp
- Housing Color
- Red
- Features
- Smooth Face
- Number of Poles
- 2
- Number of Wires
- 3
- Minimum Operating Temperature
- -40 Degrees C
- Receptacle Type
- Duplex
- Connection Orientation
- Straight
- Number of Outlets
- 2
- NEMA Receptacle Configuration
- 5-20R
- Standards
- CSA, FULS Marking, UL
- Maximum Operating Temperature
- 60 Degrees C
Description
Duplex Receptacle/Oultet, 20 Amp, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Red, Housing Material Nylon, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Horsepower Rating 1 hp, UL 94 Flammability Rating V-2
