Shop LEVITON

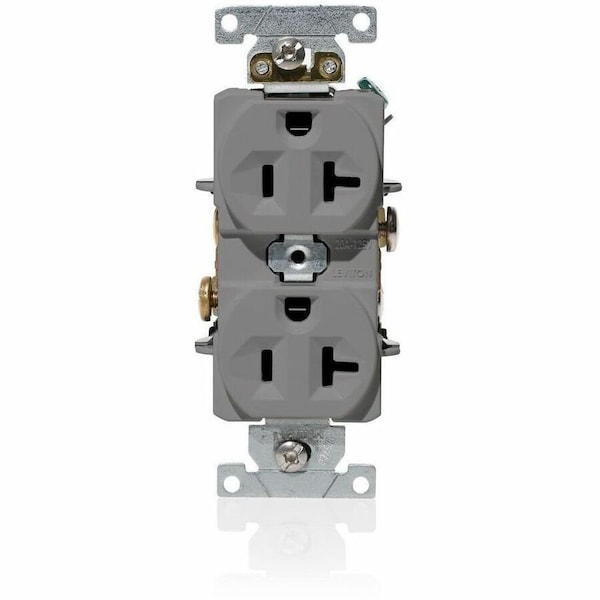

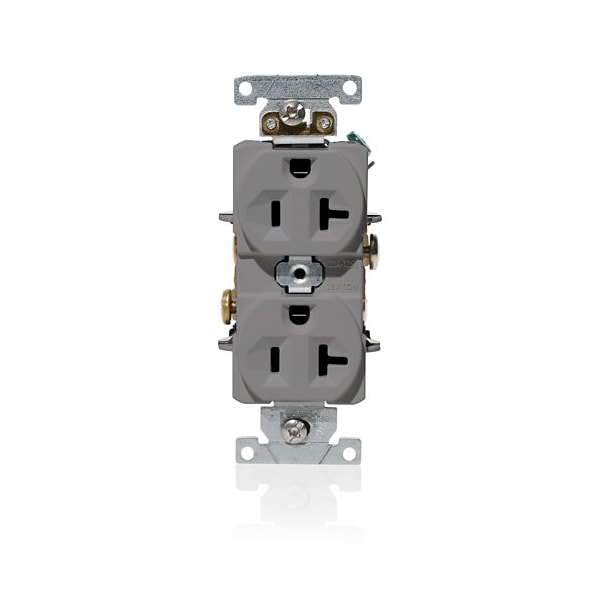

Duplex Receptacle/Oultet, 20 Amp

  • Mfr # C5362-GY

  • Zoro # G822982246

product price:
$
21.95
/ea

Key Features

Standards
CSA, FULS Marking, UL
Grounding
Grounded
Number of Wires
3
Maximum Wire Size
10 AWG
Market
Industrial
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C5362-GY
Zoro #
G822982246
UPC #
078477721711
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Face Plate Width
1.4 in
Mount Hole Center-to-Center Height
3.3 in

Details

Standards
CSA, FULS Marking, UL
Grounding
Grounded
Number of Wires
3
Market
Industrial
Contact Material
Phosphor Bronze
Voltage Rating
125V AC
Housing Material
PBT Polyester
Features
Indented Face
Horsepower Rating
1 hp
Number of Outlets
2
Wiring Method
Back/Side
Maximum Operating Temperature
75 Degrees C
Wire Connection Type
Screw Terminals
For Environment
Food and Beverage, Oily/Greasy
Item
Duplex Receptacle/Oultet, 20 Amp
NEMA Receptacle Configuration
5-20R
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees C
Housing Color
Gray
Number of Poles
2
Receptacle Type
Duplex
Current Rating
20 A
UL 94 Flammability Rating
V-0

Description

Duplex Receptacle/Oultet, 20 Amp, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Gray, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-0
