  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

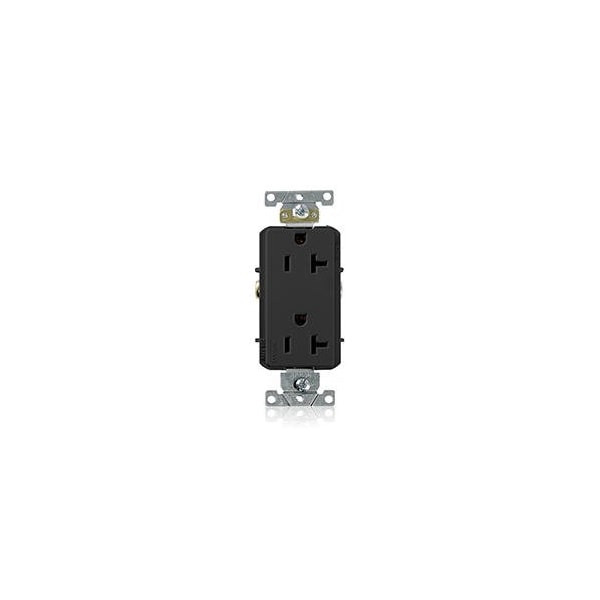

Leviton Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 16342-E - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 16342-E

  • Zoro # G616090683

product price: $4.19
/ea
Sold in multiples of 10 for $41.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16342-E
Zoro #
G616090683
UPC #
078477805435
Country of Origin
Mexico

Dimensions

Face Plate Height
2.6 in
Face Plate Width
1.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
ANSI-C-73, CSA C22.2 No. 42 File LR-406, NEMA WD-1 and WD-6, UL 498, File E13399
Resistance Properties
Tamper Resistant
Number of Gangs
1
Market
Commercial
Horsepower Rating
1 hp
Maximum Operating Temperature
60 Degrees C
Features
Smooth Face
For Environment
Food and Beverage, Oily/Greasy
Housing Material
Thermoplastic Nylon
Contact Material
Brass
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees C
Number of Outlets
2
GFCI
No
Cover Type
Screw-On Cover
NEMA Enclosure Rating
Not Rated

Description

Duplex Receptacle Outlet
