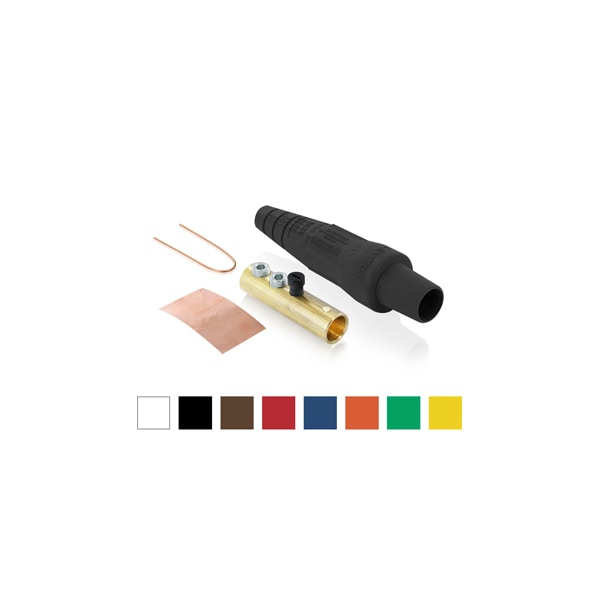

Electrical Connector Assembly 16 Srs Fml Plug 6 - No. 2 Awg Red (Discontinued)
- Mfr # 16D45-UR
- Zoro # G5711362
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
16D45-UR
Zoro #
G5711362
UPC #
078477725276
Country of Origin
Mexico
Dimensions
Width
11 in
Length
8.00 in
Height
7.2500 in
Wire Size
6 to 2
Dimensions
1.72 in Dia x 6.85 in L
Details
Type
1-Pole Cam Type Taper Nose While-in-Use
Series
16 Series
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
190 Amp
Voltage Rating
600
NEMA Rating
Type 3R
Color
Red
Standards
1691, 508 to 35k A / 600V Short Circuit Current Rating
Housing Material
Santoprene TPV
Conductor Material
Brass
Cable Range
#6 to #2 AWG
Application
Industrial
Amperage Rating
190
Standard
UL 1691
Number of Poles
1
Mounting Type
Threaded
Description
Female Plug, Contact & Insulator, Cam-Type, Detachable, Double Set Screw Termination, #6 - #2 AWG, 190 Amp Continuous, 600 Volts, 16 Series Taper Nose, Type 3R "While-in-Use"-Red
