This item is Discontinued.

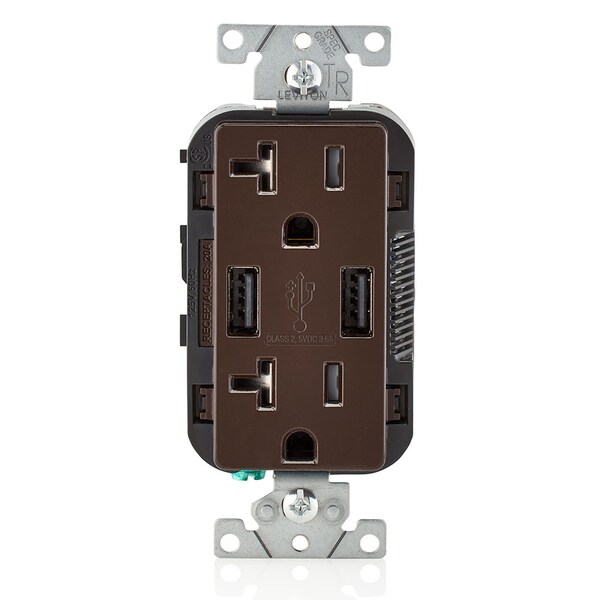

Leviton ELECTRICAL RECEPTACLES 20A TR RECPT USB CHRG T5832-B

ELECTRICAL RECEPTACLES 20A TR RECPT USB CHRG (Discontinued)

  • Mfr # T5832-B
  • Zoro # G3841023
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T5832-B
Zoro #
G3841023
UPC #
78477764367
Country of Origin
China

Dimensions

Height
9.0620 in
Length
15.2500 in

Details

Type
Type A/A Duplex Receptacle
Voltage
125 VAC
Color
Brown
UL 1310
Yes
Grounding
Grounding
Body Material
Thermoplastic
FCC Part 15
Class B for Residential Compliance
Termination
Back & Side
Terminal ID
Brass-Hot Black-Hot White-Neutral Green-Gnd
Flammability
Rated V-0 per UL 94
UL 498
Yes
NEMA
5-20R
Terminal Accom.
14-12 AWG
Cover Material
Thermoplastic
Operating Temperature
-10°C to 40°C
Torque Range
14 - 18 in.-lbs
Ratings
20A-125V
Grade
Residential/Commercial Specification Grade
Amperage
20 A
Listed
cCSAus
Strap Material
Steel
Horsepower Rating
20A-1 HP
Voltage Rating
125 V
Application
Residential / Commercial

Description

Combination Duplex Receptacle/Outlet and USB Charger. 20 Amp, 125 Volt, Decora Tamper-Resistant Receptacle/Outlet, NEMA 5-20R. 3.6 Amps, 5VDC, 2.0 Type A USB Chargers. Grounding, Side Wired & Back Wired - Brown
