  6. ELECTRICAL RECEPTACLES 520R SLCK PRO GFI W/LEADS TR IV

This item is Discontinued.

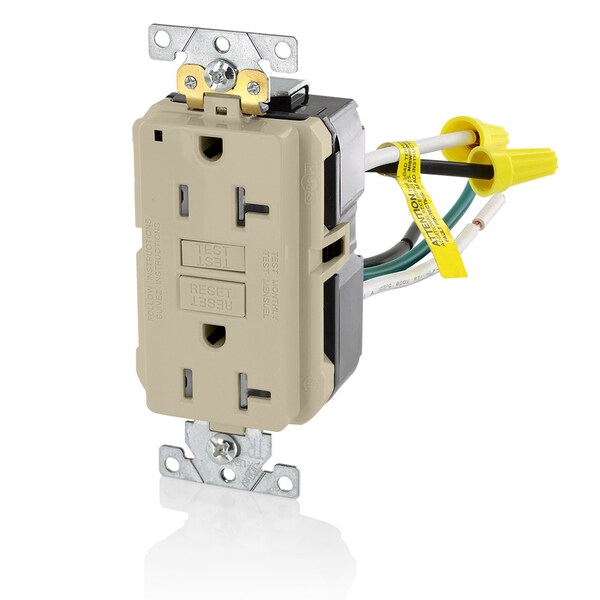

Leviton ELECTRICAL RECEPTACLES 520R SLCK PRO GFI W/LEADS TR IV GFTR2-5LI

ELECTRICAL RECEPTACLES 520R SLCK PRO GFI W/LEADS TR IV (Discontinued)

  • Mfr # GFTR2-5LI
  • Zoro # G3897084
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
GFTR2-5LI
Zoro #
G3897084
UPC #
78477724279
Country of Origin
China

Dimensions

Length
2.25 in
Width
2 in
Height
4.25 in
Dimensions
4.05 in H x 1.74 in W x 1.36 in D

Details

Grounding
Self-Grounding
Material
Polycarbonate / PBT
Color
Ivory
Type
Self-test SmartLock Pro Slim GFCI
Application
Extra-Heavy Duty Industrial Grade
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Short Circuit Current Rating
10kA
Temperature Rise
Max 30C after 250 cycles overload at 200 percent rated current
NEMA
WD-1 & WD-6
Trip Level
Class A, 5mA plus or minus 1mA
Operating Temperature
-35C to +66C
Face Material
PBT
Line Contacts
Brass
Flammability
Rated V-0 per UL 94
Wire Leads
#6" long 12 AWG TEW line & load leads plus ground leads
Body Material
Polycarbonate
Pole
2
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Certification/Listing
UL, CSA, NOM-ANCE
ANSI
C-73
Terminal Accom.
14-10 AWG solid or stranded
Strap Material
Galvanized Steel
Screw Terminal Torque
14-18 in-lbs
At Rated Voltage
1 HP
Ground Clips
Brass
Wire
3
Shutter Mechanism
Delrin® Acetal
Lead Identification
Black-Hot, White-Neutral, Green-Ground
Temperature Rating
-35C to +66C °C
Voltage Rating
125 V
NEMA Rating
5-20R
Grade
Extra Heavy Duty/Industrial
Amperage Rating
20 A

Description

20 Amp, 125 Volt, SmartlockPro Slim Self-Test GFCI Leaded Receptacle, Extra-Heavy Duty Industrial Grade, NEMA 5-20R, 2P, 3W, Tamper-Resistant, Pigtail Leads 6 Inch Wired - IVORY
