Shop LEVITON

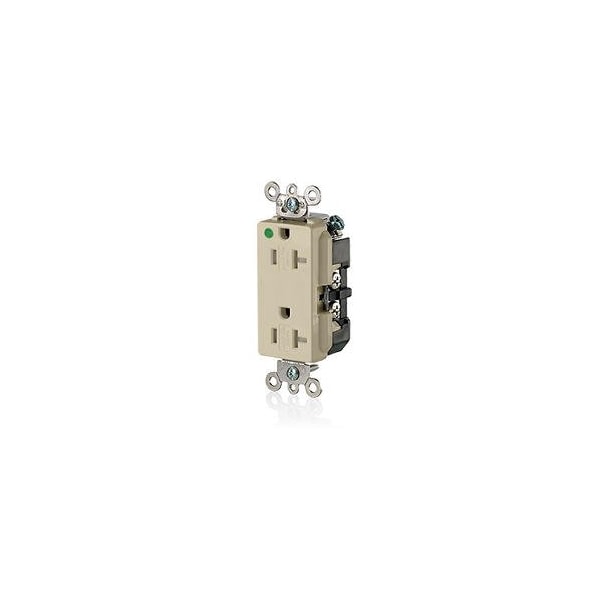

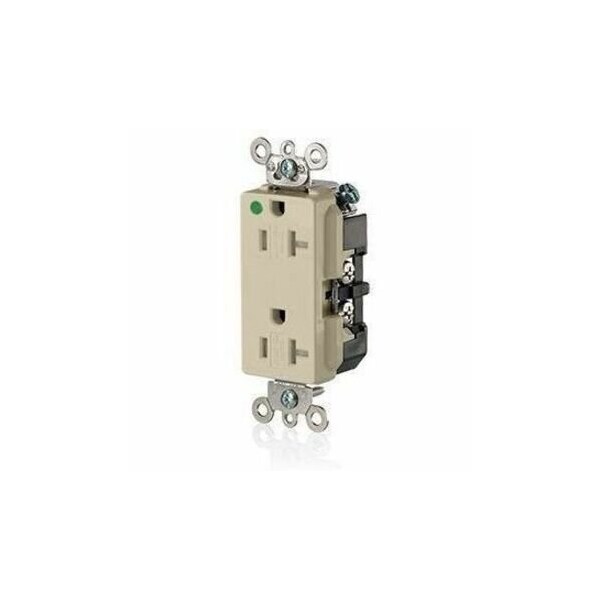

Electrical Receptacles Iv Rec Dec+ Dup Hg Tr 2Po 3Wi 20A125V

  • Mfr # 16362-SGI

  • Zoro # G0815127

product price:  $21.49
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16362-SGI
Zoro #
G0815127
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Depth
1.3 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.6 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Surface
IP Rating
Not Rated
Standards
ANSI C73, CSA Certified C22.2 No 42 File E152105, RoHS Compliant, UL 498HG File E13399
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Includes
Mounting Hardware
Contact Material
Brass
UL 94 Flammability Rating
V-2
Grade
Hospital Grade
Connection Orientation
Straight
Features
Smooth Face
Market
Commercial, Industrial
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
Includes Mounting Hardware
Yes
Horsepower Rating
1 hp
Housing Material
Nylon
Number of Outlets
2
Cover Type
No Cover
Shrouded
Yes
GFCI
No
Surge Protection
No
AFCI
No
Polarized
Yes
NEMA Enclosure Rating
Not Rated
Number of Wall Plates Included
0

Description

Straight Blade Decora Duplex Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Nylon, Mount Type Surface, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
