Shop LEVITON

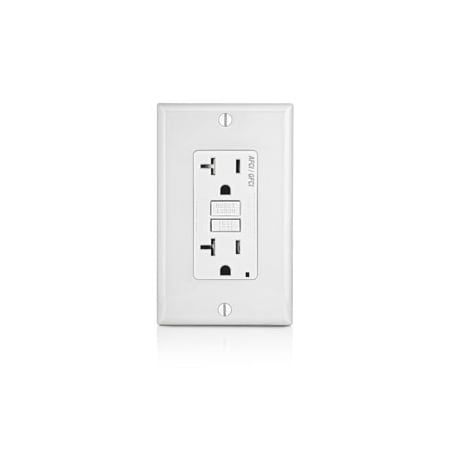

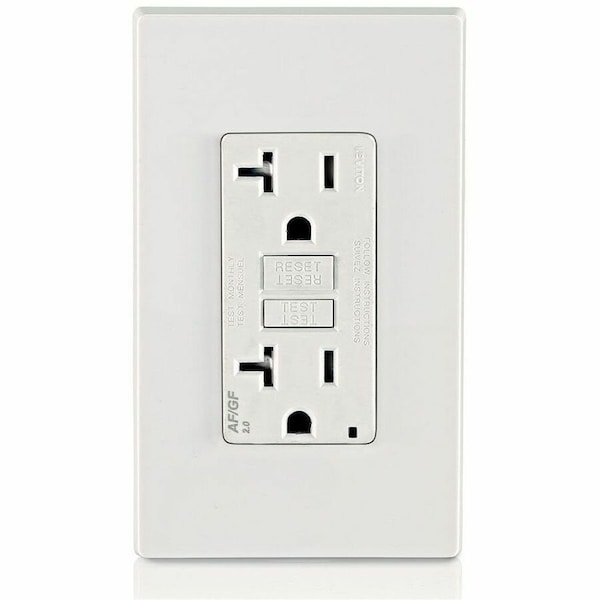

ELECTRICAL RECEPTACLES WH 2-FUNCTION AFCI ST GFCI REC 20A-125V

  • Mfr # AGTR2-W

  • Zoro # G3837286

product price:  $44.49
/ea

Key Features

Grounding
Self-Grounding
Color
White
Voltage
125 VAC
Type
Duplex Receptacle
Line Contacts
Brass Double-Wipe .031 Thick
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AGTR2-W
Zoro #
G3837286
UPC #
78477744420
Country of Origin
China

Dimensions

Height
6.2500 in
Dimensions
4.21 in H x 1.68 in W x 1.38 in D
Length
9.2500 in

Details

Grounding
Self-Grounding
Color
White
Voltage
125 VAC
Type
Duplex Receptacle
Line Contacts
Brass Double-Wipe .031 Thick
UL1699.A
File E480630
Amperage
20 A
Torque Range
14-18 in.-lbs
At Rated Voltage
1 HP
Feature
AFCI, Self-test, Tamper-Resistant
Operating Temperature
-35C to +66C
NEMA
5-20R
Wire
3
Terminal Accom.
14-10 AWG
UL Fed Spec WC-596
Yes
Face Material
Thermoplastic
Grounding Screw
Plated Steel
UL498
Yes
Strap Material
Galvanized Steel
Terminal Screws
Plated Steel
Dielectric Voltage
Withstands 1250VAC per UL 1699A
Wallplate
Included
Flammability
Rated V-2 per UL 94
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
CSA C22.2 No. 42
Yes
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Body Material
Polycarbonate
ANSI
C-73
Standards and Certifications
UL/CSA, NEMA WD6, NEMA WD1
Pole
2
Series
AGTR2
Clamps
Brass
Yoke
Zinc-Plated Steel
Termination
Back & Side
Standard
UL listed
Terminal Type
Back/Side Wired
NEMA Rating
NEMA 5-20R
Temperature Rating
-35 to 66 °C

Description

20 Amp, 125 Volt Dual Function AFCI/GFCI Receptacle, 20 Amp Feed-Through, Tamper-Resistant, Monochromatic, back and side wired, nylon wallplate/faceplate, screws and self-grounding clip included – White
