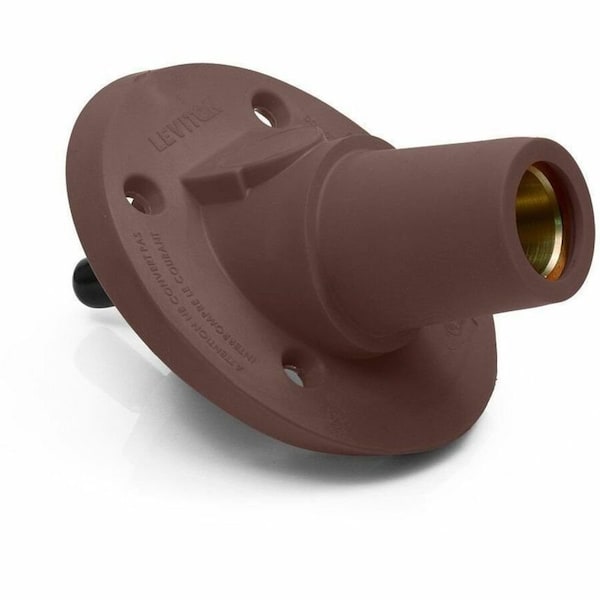

Female Panel Mount Receptacle
Mfr # 17R24-SH
Zoro # G415866885
product price: $280.99
/ea
Free Shipping & Returns
Key Features
Current Rating
600 A
Voltage Rating
600V AC, 600V DC
Standards
UL 1691
NEMA Enclosure Rating
3R
Flange Diameter
4.5 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
17R24-SH
Zoro #
G415866885
UPC #
078477667330
Country of Origin
Mexico
Dimensions
Flange Diameter
4.5 in
Flange Height
5.42 in
Maximum Wire Size
500 kcmil
Stud Thread Size
1/2"-13
Minimum Wire Size
250 kcmil
Flange Width
0.5 in
Overall Length
6.04 in
Details
Current Rating
600 A
Voltage Rating
600V AC, 600V DC
Item
Single Pole Receptacle
Standards
UL 1691
NEMA Enclosure Rating
3R
For Location
Indoor, Outdoor
Mounting Style
Threaded Mounting
Gender
Female
Phase
Single
Terminal Connection Type
Threaded Stud
Housing Color
Brown
Flange Shape
Round
Housing Material
Santoprene TPV
Connection Orientation
Angled
End Type
Taper Nose
Contact Material
Brass
Description
Single Pole Receptacle, Connection Orientation Angled, Current Rating 600 A, Gender Female, Housing Color Brown, Housing Material Santoprene TPV, Maximum Wire Size 500 kcmil, Minimum Wire Size 250 kcmil, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Diameter 4.5 in, Flange Height 5.42 in, Flange Shape Round, Flange Width 0.5 in, NEMA Enclosure Rating 3R, Standards UL 1691, Terminal Connection Type Threaded Stud, For Location Indoor, Outdoor
