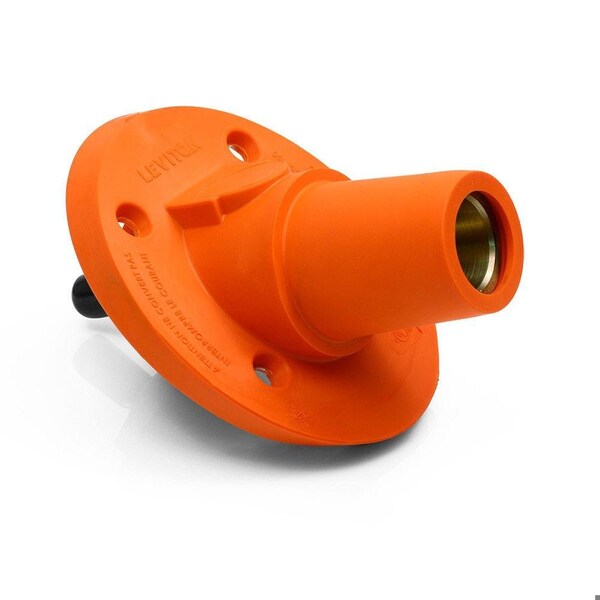

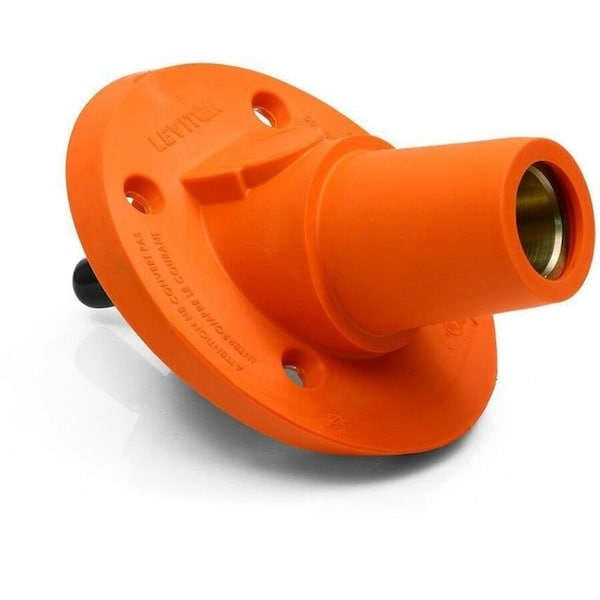

Female Panel Mount Receptacle
Mfr # 17R24-SO
Zoro # G915866941
product price: $259.99
/ea
Free Shipping & Returns
Key Features
Voltage Rating
600V AC, 600V DC
Standards
UL 1691
Current Rating
600 A
Phase
Single
Stud Thread Size
1/2"-13
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
17R24-SO
Zoro #
G915866941
UPC #
078477667323
Country of Origin
Mexico
Dimensions
Stud Thread Size
1/2"-13
Overall Length
6.04 in
Flange Height
5.42 in
Maximum Wire Size
500 kcmil
Flange Width
0.5 in
Minimum Wire Size
250 kcmil
Flange Diameter
4.5 in
Details
Voltage Rating
600V AC, 600V DC
Standards
UL 1691
Current Rating
600 A
Item
Single Pole Receptacle
Phase
Single
Gender
Female
NEMA Enclosure Rating
3R
Connection Orientation
Angled
Mounting Style
Threaded Mounting
End Type
Taper Nose
Housing Material
Santoprene TPV
Terminal Connection Type
Threaded Stud
Housing Color
Orange
Flange Shape
Round
Contact Material
Brass
For Location
Indoor, Outdoor
Description
Single Pole Receptacle, Connection Orientation Angled, Current Rating 600 A, Gender Female, Housing Color Orange, Housing Material Santoprene TPV, Maximum Wire Size 500 kcmil, Minimum Wire Size 250 kcmil, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Diameter 4.5 in, Flange Height 5.42 in, Flange Shape Round, Flange Width 0.5 in, NEMA Enclosure Rating 3R, Standards UL 1691, Terminal Connection Type Threaded Stud, For Location Indoor, Outdoor
