  9. Connector, Double Set Screw, Red, Female

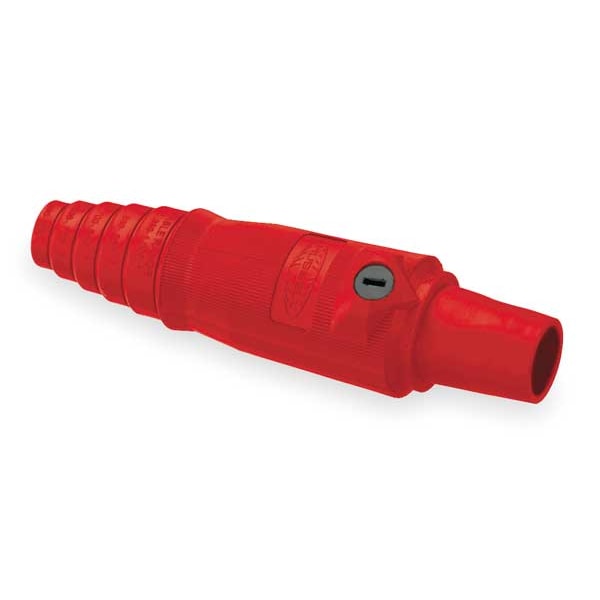

Hubbell Wiring Device-Kellems Connector, Double Set Screw, Red, Female HBL400FR - main

Connector, Double Set Screw, Red, Female

  • Mfr # HBL400FR

  • Zoro # G1957672

product price: $44.15
/ea

Key Features

Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL400FR
Zoro #
G1957672
UPC #
783585113760
Country of Origin
China

Dimensions

Maximum Wire Size
4/0 AWG
Minimum Wire Size
2/0 AWG
Overall Width
1.95 in
Overall Length
7.1 in

Details

Item
Connector
Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12K, 3R, 4X
Single Pole Device Style
Taper Nose
Color
Red
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Material
Thermoplastic Elastomer
Cable Range
2/0 to 4/0
Conductor Material
Brass
Amps AC/DC
400AC/DC
Amps AC
400 A
Gender
Female
End Type
Taper Nose
Contact Type
Single Cam
Housing Color
Red
NEMA Enclosure Rating
12, 3R, 4X
Terminal Connection Type
Double Set Screw
UL 94 Flammability Rating
HB
Compatible with Series
16
Housing Material
Thermoplastic Elastomer
Contact Material
Brass
Current / Amperage Rating
400 A
Voltage Rating Description
600V AC/DC
Amperage Rating
400 A
Style
Female
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - 2/0 to 4/0 AWG
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12

Description

The HUBBELL Connector, Double Set Screw, Red, Female is a single pole device intended for use in temporary electrical power distribution. It features a double set screw terminal connection and is compatible with Series 16 systems. The connector accommodates cable sizes from 2/0 to 4/0 AWG and supports up to 400 A at voltages of 600V AC or 250V DC. Its construction includes a thermoplastic elastomer housing and brass contacts for reliable performance in demanding settings.


Key Features of the HUBBELL Connector, Double Set Screw, Red, Female:

  • Amperage Rating: Rated for up to 400 A (AC/DC)

  • Voltage Rating: Supports up to 600V AC or 250V DC

  • Cable Range: Accepts wire sizes from 2/0 AWG to 4/0 AWG

  • Terminal Connection Type: Double set screw terminal connection

  • Contact Material: Brass single cam contact

  • Housing Material: Thermoplastic elastomer housing

  • NEMA Enclosure Ratings: Suitable for use in NEMA Types 3R, 4X, and 12 enclosures

  • Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements; UL94 HB flammability rating

  • End Type / Device Style: Taper nose style; female configuration compatible with Series 16 devices
