  9. Female Receptacle, Grn, 2-4/0, 300/400Ac/Dc

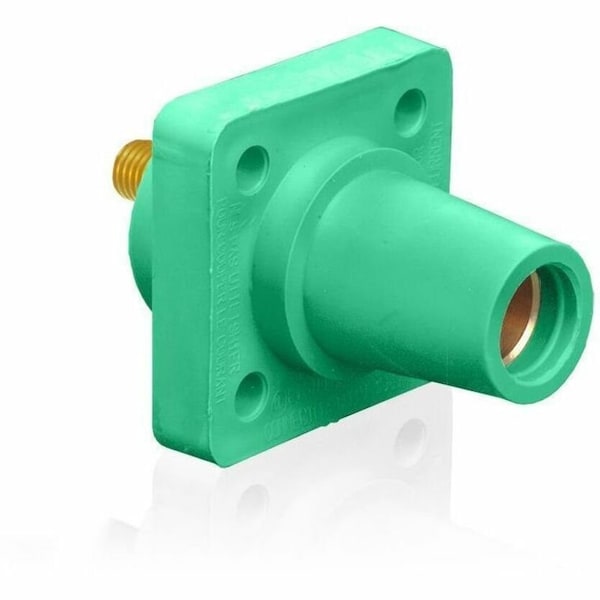

Leviton Female Receptacle, Grn, 2-4/0, 300/400Ac/Dc 16R24-UG - main

Female Receptacle, Grn, 2-4/0, 300/400Ac/Dc

  • Mfr # 16R24-UG

  • Zoro # G6246257

product price: $30.85
/ea

Key Features

Type
90 deg Cam Type Female Taper Nose
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
400 Amp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16R24-UG
Zoro #
G6246257
UPC #
78477719428
Country of Origin
Mexico

Dimensions

Length
5.50 in
Width
10 in
Height
7.2500 in
Dimensions
2.28 in H x 2.28 in W

Details

Item
Receptacle
Type
90 deg Cam Type Female Taper Nose
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
400 Amp
Voltage Rating
600VAC/250VDC
NEMA Rating
3R, 4X, 12
Contact Material
Brass
Standards
UL & CSA
Housing Material
Santroprene TPV
Material
Thermoplastic Elastomer
Color
Green
Mounting
Screw Mount
Amps AC/DC
300/400AC/DC
Single Pole Device Style
Taper Nose
Fits
Male Plug
Cable Range
2 to 4/0
Conductor Material
Solid Brass
Application
Motor and Generator Splices, Mining and Construction Sites, Commercial and Navy Shipbuilding an
Standard
UL: 1691
Mounting Type
Panel
Temperature Rating
86
Specifications
3/4 in L Threaded Stud
Amperage Rating
400
Connection Type
Threaded Stud

Description

16 Series Female Panel Receptacle, Cam-Type, 90-Degree, Threaded Stud Length - 3/4", Taper Nose, 400 Amp, Cable Range - #2 to 4/0 AWG - Green
