  6. Flanged Locking Inlet, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White

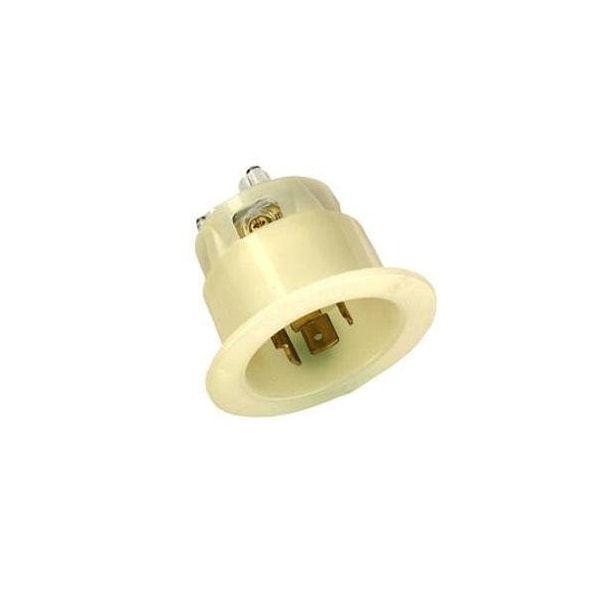

Leviton Flanged Locking Inlet, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White 2445 - main

Flanged Locking Inlet, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White

  • Mfr # 2445

  • Zoro # G315864752

product price:  $36.49
/ea

Key Features

NEMA Receptacle Configuration
L18-20P
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2445
Zoro #
G315864752
UPC #
078477806296
Country of Origin
Mexico

Dimensions

Face Diameter
2.03 in
Maximum Wire Size
10 AWG
Overall Depth
2 in
Flange Diameter
3.03 in
Flange Height
2 in
Minimum Wire Size
18 AWG
Flange Width
3.8 in

Details

Item
Locking Plug
NEMA Receptacle Configuration
L18-20P
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Non-Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
ANSI, CSA, NEMA, NOM, UL Fed Spec, UL498
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Flange Material
Nylon
Wiring Style
Standard
NEMA Enclosure Rating
Not Rated
Shrouded
Yes
Horsepower Rating
2 hp
Market
Industrial
Housing Material
Nylon
NEMA Plug Configuration
L18-20P
Maximum Operating Temperature
140 Degrees F
Number of Blades
4
Includes
Gasket, Screws
Flange Shape
Round
Includes Mounting Hardware
Yes
For Environment
Dry
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Midget Locking
No
Features
VARI-SIZE(R) Insert Adjusts to Wide Range of Cord Sizes
IP Rating
Not Rated
Number of Gangs
1
Series
Insulgrip
Grade
Federal Specification
Number of Outlets
1
UL 94 Flammability Rating
V-2
Polarized
Yes

Description

Twenty Amp
