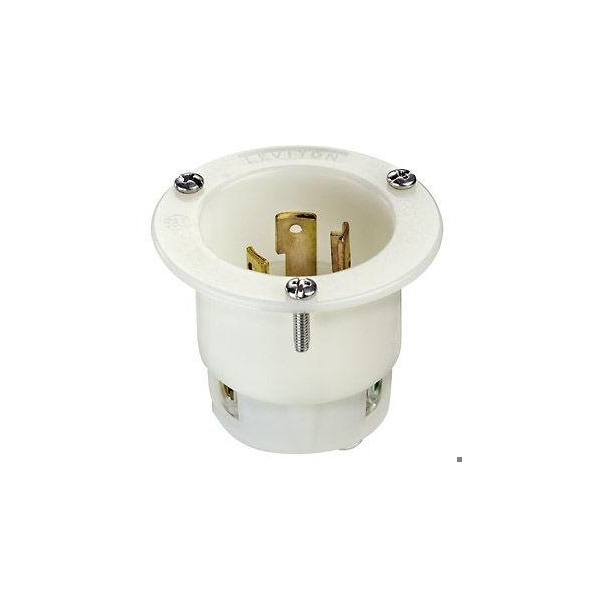

Leviton Flanged Locking Inlet, 30 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White 2625F - main

Flanged Locking Inlet, 30 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White

  • Mfr # 2625F

  • Zoro # G516091384

product price:  $55.89
/ea

Key Features

NEMA Receptacle Configuration
L6-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2625F
Zoro #
G516091384
UPC #
078477806623
Country of Origin
Mexico

Dimensions

Face Diameter
2.88 in
Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Flange Diameter
2.75 in
Flange Width
3.8 in

Details

Item
Locking Plug
NEMA Receptacle Configuration
L6-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
ANSI C-73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 57, RoHS, UL FED SPEC WC-596 File E13393, UL498 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Wiring Style
Hinged
Flange Material
Nylon
IP Rating
Not Rated
NEMA Enclosure Rating
Not Rated
NEMA Plug Configuration
L6-30P
Horsepower Rating
2 hp
Market
Industrial
For Environment
Dry
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees C
Features
Accepts Slotted and Phillips Head Drivers
Maximum Operating Temperature
60 Degrees C
Number of Blades
3
Flange Shape
Round
Polarized
Yes
Midget Locking
No
Number of Gangs
1
Number of Outlets
1
Connection Orientation
Straight
Includes
None
Shrouded
Yes
Series
Insulgrip
Grade
Federal Specification
UL 94 Flammability Rating
V-2

Description

Flanged Inlet Locking Receptacle
