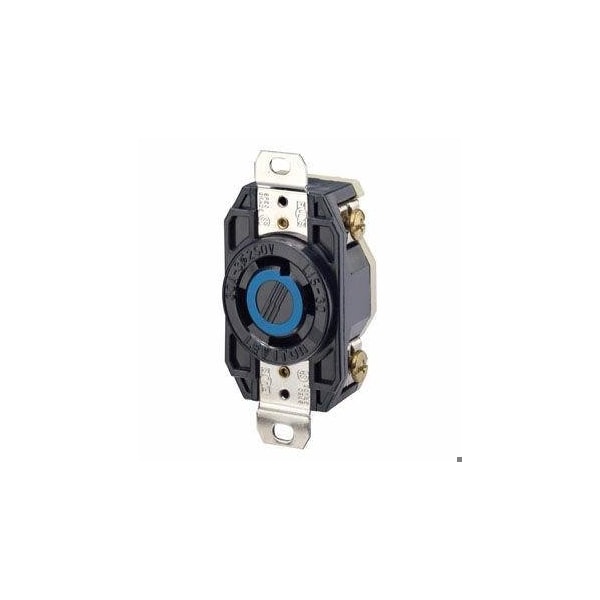

Flanged Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Black

Mfr # 2720
Zoro # G416090760

41.89

Key Features

NEMA Receptacle Configuration

L15-30R

Current Rating

30 A

Voltage Rating

250V AC

Phase

Single

Number of Poles

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 2720
Zoro #: G416090760
UPC #: -
Country of Origin: Mexico

Dimensions

Minimum Wire Size: 14 AWG
Face Plate Height: 2.67 in
Face Diameter: 1.56 in
Mount Hole Center-to-Center Height: 3.75 in
Face Plate Width: 1.69 in
Maximum Wire Size: 8 AWG
Overall Depth: 1.31 in

Details

Item: Flanged Locking Receptacle
NEMA Receptacle Configuration: L15-30R
Current Rating: 30 A
Voltage Rating: 250V AC
Phase: Single
Number of Poles: 3
Number of Wires: 4
Wire Connection Type: Screw Terminals
Grounding: Grounded
Housing Color: Black
Mount Type: Flush
Flange Type: Non-Flanged
Standards: ANSI C-73, CSA: C22.2 No. 42, NEMA WD-6, NOM 57, RoHS, UL 498, UL FED SPEC W-C-596
Shrouded: Yes
Wiring Style: Standard
NEMA Enclosure Rating: Not Rated
For Environment: Corrosive
Contact Material: Brass
Market: Industrial
Number of Gangs: 1
Minimum Operating Temperature: -40 Degrees C
Connection Orientation: Straight
Maximum Operating Temperature: 60 Degrees C
Polarized: Yes
Housing Material: Nylon
UL 94 Flammability Rating: V-0
Hub Type: Dead End
Number of Outlets: 2
Cover Type: No Cover
Horsepower Rating: 1 hp
Midget Locking: No
Series: Hubbell-PRO
IP Rating: Not Rated

Description

Flush Mtg Locking Receptacle,Black
