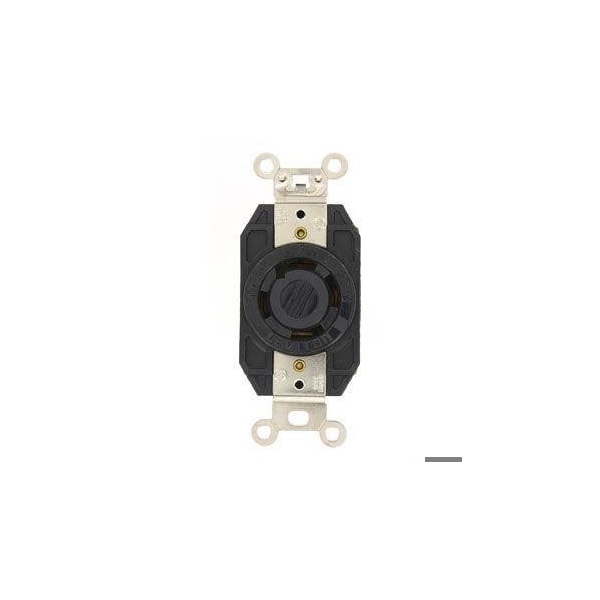

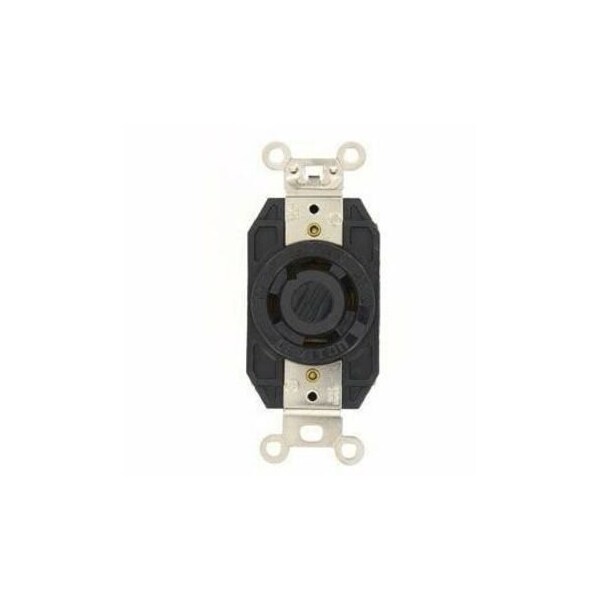

Leviton Flanged Locking Receptacle, L20-30R, 30 A, 347/600V AC, Three Phase, 4 Pole, Flush Mount, Black 2770 - main

Flanged Locking Receptacle, L20-30R, 30 A, 347/600V AC, Three Phase, 4 Pole, Flush Mount, Black

  • Mfr # 2770

  • Zoro # G516090134

product price:  $73.59
/ea

Key Features

NEMA Receptacle Configuration
L20-30R
Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2770
Zoro #
G516090134
UPC #
-
Country of Origin
Mexico

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
14 AWG

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
L20-30R
Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Non-Grounded
Housing Color
Black
Mount Type
Flush
Flange Type
Non-Flanged
Standards
ANSI C-73, CSA: C22.2 No. 42, NEMA WD-1 and WD-6, NOM 57, RoHS, UL, UL 498, UL FED SPEC W-C-596
Wiring Style
Standard
NEMA Enclosure Rating
Not Rated
Shrouded
Yes
Market
Industrial
Connection Orientation
Straight
Contact Material
Brass
For Environment
Corrosive
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees C
Number of Gangs
1
Maximum Operating Temperature
60 Degrees C
Polarized
Yes

Description

Flush Mtg Locking Receptacle,Black
