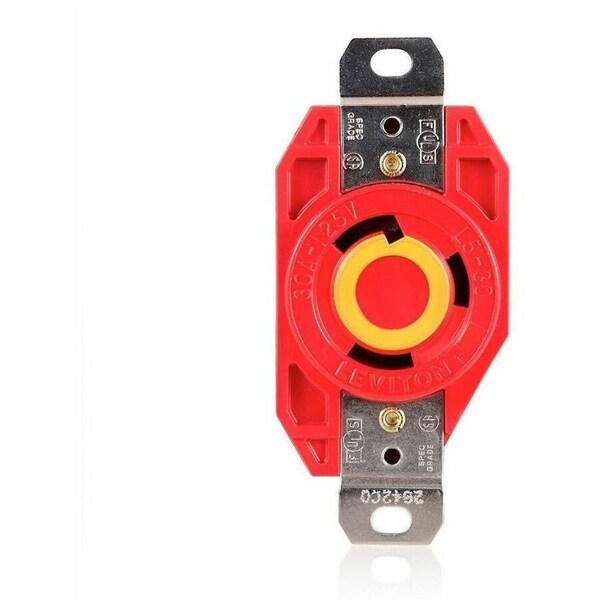

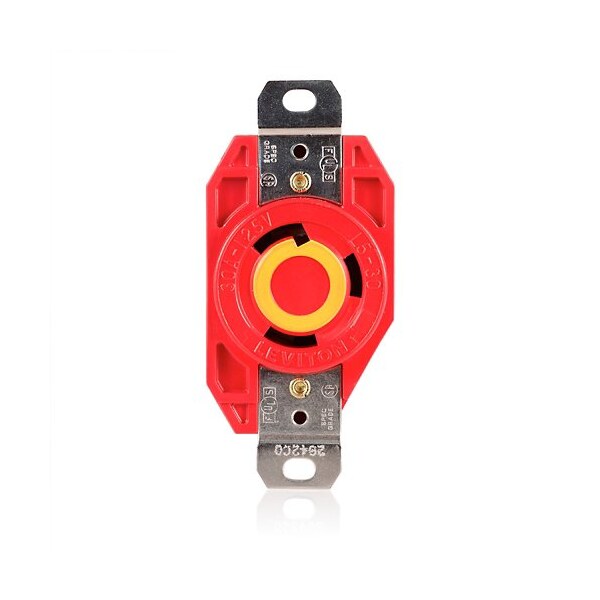

Leviton Locking Receptacle, 30 A, 125V AC, Red 2610-R - main

Locking Receptacle, 30 A, 125V AC, Red

  • Mfr # 2610-R

  • Zoro # G022586435

product price:  $63.29
/ea

Key Features

Cover Type
No Cover
Mount Hole Center-to-Center Height
3.75 in
IP Rating
Not Rated
Number of Wires
3
Grounding
Grounded
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2610-R
Zoro #
G022586435
UPC #
78477333167
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.75 in
Face Plate Height
2.67 in
Face Diameter
1.56 in
Maximum Wire Size
8 AWG
Overall Depth
1.31 in
Face Plate Width
1.69 in
Minimum Wire Size
14 AWG

Details

Cover Type
No Cover
IP Rating
Not Rated
Number of Wires
3
Grounding
Grounded
Flange Type
Non-Flanged
Housing Color
Red
Item
Locking Receptacle
Market
Industrial
NEMA Enclosure Rating
Not Rated
Connection Orientation
Straight
Current Rating
30 A
Horsepower Rating
1 hp
UL 94 Flammability Rating
V-0
Number of Gangs
1
Phase
Single
Resistance Properties
Impact Resistant
Hub Type
Dead End
Number of Outlets
2
For Environment
Industrial
Number of Poles
2
Series
Hubbell-PRO
Midget Locking
No
Shrouded
Yes
Standards
ANSI C-73, CSA C22.2 No. 42, NEMA WD-1 and WD-6, NOM 057, UL 498, UL Fed Spec W-C-596
NEMA Receptacle Configuration
L5-30R
Minimum Operating Temperature
-40 Degrees C
Housing Material
Valox
Wire Connection Type
Screw Terminals
Mount Type
Flush
Contact Material
Brass
Voltage Rating
125V AC
Maximum Operating Temperature
60 Degrees C
Features
Single-Piece Contacts for Superior Conductivity, Triple Head Brass

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 30 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Red, Housing Material Valox, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration L5-30R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Shrouded Yes, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Brass, Cover Type No Cover, Face Diameter 1.56 in
