Shop LEVITON

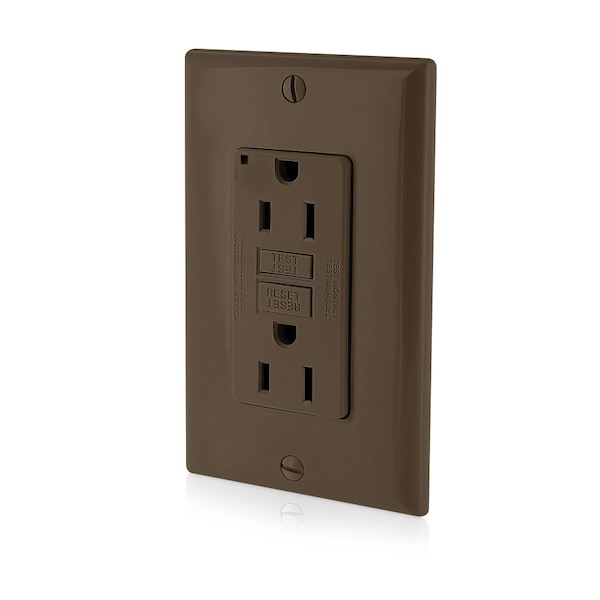

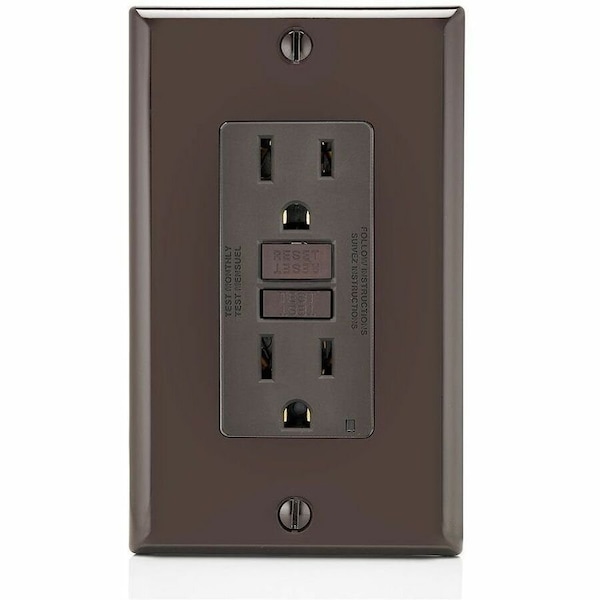

GFCI Receptacle, 15A, 125Vac, 5-15R, Brown

  • Mfr # GFNT1

  • Zoro # G3835807

product price:  $21.85
/ea

Key Features

Grounding
Self-Grounding
Mounting Type
Flush
Material
Polycarbonate/Thermoplastic
Number of Poles
2
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GFNT1
Zoro #
G3835807
UPC #
78477712535
Country of Origin
China

Dimensions

Height
6.2500 in
Length
9.2500 in
Dimensions
4.21 in H x 1.69 in W x 1.32 in D

Details

Item
GFCI Receptacle
Grounding
Self-Grounding
Mounting Type
Flush
Material
Polycarbonate/Thermoplastic
Number of Poles
2
Number of Wires
3
Item - Plugs and Receptacles
GFCI Receptacle
Tamper Resistant
No
Surge Suppression
No
Weather Resistant
No
Wiring Method
Back and Side
Amps - Plugs and Receptacles
15
Outlet Type
Decorator
Color - Plugs and Receptacles
Brown
Voltage
125VAC
Outlet Type - Plugs and Receptacles
Decorator Duplex
Type
Standard Duplex
NEMA Configuration
5-15R
Application Environment
Commercial
Power Indicator
Yes
Self-Testing
Yes
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Reset Type
Automatic
HP
1.0
Voltage - Plugs and Receptacles
125VAC
Amps - Plugs and Receptacles
15 A
Color
Brown
Weather Resistant - Plugs and Receptacles
No
Amps
15A
Mounting Type - Plugs and Receptacles
Flush
Standards and Certifications
UL/CSA, NEMA WD6
Amperage
15 A
Fed Spec WC-596
Yes
Line Contacts
Brass Double Wipe .031 Thick
CSA-C22.2 No. 144.1-06
File LR-57811
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
UL498
Yes
NEMA
5-15R
Feature
Self-Test
Wire
3
Operating Temperature
-35C to +66C
Face Material
Thermoplastic
Termination
Back & Side
ANSI
C-73
Terminal Screws
Plated Steel
Grade
Residential/Commercial Specification Grade
CSA C22.2 No. 42
Yes
Short Circuit Current Rating
10KA
Trip Level
Class A, 5mA plus or minus 1mA
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Wallplate
Included
Torque Range
14-18 in.-lbs
Grounding Screw
Plated Steel
At Rated Voltage
1 HP
Body Material
Polycarbonate
Strap Material
Galvanized Steel
Pole
2
Terminal Accom.
14-10 AWG
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Yoke
Zinc-Plated Steel
Clamps
Brass
Standard
UL/CSA
Voltage Rating
125 V
Frequency Rating
2
Temperature Rating
-35C to +66C °C
Application
Residential
Terminal Type
Back/Side Wired
Series
Self-test SmartLock Pro Slim GFCI

Description

15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartLock Pro Slim GFCI, monochromatic, back and side wired, nylon wallplate/faceplate and self grounding clip included - Brown
