Shop LEVITON

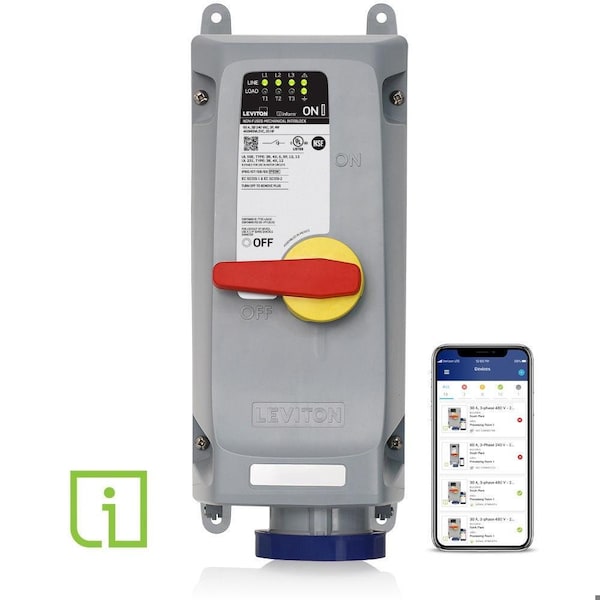

Pin and Sleeve Mechanical Interlock

  • Mfr # 460MI9WLEVC

  • Zoro # G916091434

product price:
$
1,865.99
/ea
Free Shipping & Returns

Key Features

NEMA Enclosure Rating
12, 3R, 4X
Maximum Operating Temperature
60 Degrees C
Resistance Properties
UV/Sunlight Resistant, Watertight
Compatible with Series
LEV
Voltage Rating
240V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
460MI9WLEVC
Zoro #
G916091434
UPC #
078477380802
Country of Origin
Mexico

Dimensions

Overall Depth
9.4 in
Overall Height
17.37 in
Overall Width
9.25 in

Details

Item
Mechanical Interlock
NEMA Enclosure Rating
12, 3R, 4X
Maximum Operating Temperature
60 Degrees C
Resistance Properties
UV/Sunlight Resistant, Watertight
Compatible with Series
LEV
Voltage Rating
240V AC
Housing Color
Blue
Phase
Three
Handle Material
PBT+PC with TPE Overmold
Number of Wires
4
Fuse Protection
Non-Fused
Horsepower Rating
20 hp
UL 94 Flammability Rating
V-0
Minimum Operating Temperature
-40 Degrees C
Contact Material
Nickel-Plated Brass
Number of Poles
3
Housing Material
PBT, Polycarbonate
Standards
CSA C22.2 No. 94.1-07, IEC Rating 60309-1, 60309-2, 60309-4, NSF 14159-1, UL 1682, UL 1686, UL 50, UL 50E, UL 60947-4-1, UL 60947-1, UL 746
Electrical Connection Type
Pin and Sleeve
IP Rating
IP66, IP67, IP68, IP69, IP69K
Current Rating
60 A
Locking Handle
Yes
Circuit Breaker
No
Reverse Service
No
Features
Wi-Fi Remote Monitoring
Series
LEV

Description

Pin and Sleeve Mechanical Interlock
