  11. GFCI Receptacle, 20A, 125Vac, 5-20R, Black

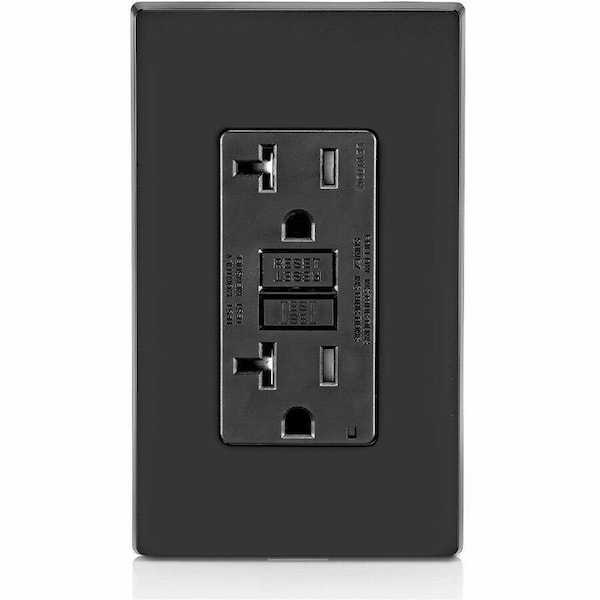

Leviton GFCI Receptacle, 20A, 125Vac, 5-20R, Black GFTR2-E - main

GFCI Receptacle, 20A, 125Vac, 5-20R, Black

  • Mfr # GFTR2-E

  • Zoro # G3836078

product price: $23.99
/ea

Key Features

Grounding
Self Grounding
Mounting Type
Flush
Number of Poles
2
Number of Wires
3
Standards
ANSI C73CSA C22.2 No. 144.1-06/42 File No. LR57811Federal Specification WC596MIL-SPEC A-A-55459-SBNOM CertifiedUL 498/943 File No. E48380
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTR2-E
Zoro #
G3836078
UPC #
78477497326
Country of Origin
China

Dimensions

Height
6.2500 in
Dimensions
4.21 in H x 1.69 in W x 1.4 in D
Length
9.2500 in

Details

Item
GFCI Receptacle
Grounding
Self Grounding
Mounting Type
Flush
Number of Poles
2
Number of Wires
3
Standards
ANSI C73CSA C22.2 No. 144.1-06/42 File No. LR57811Federal Specification WC596MIL-SPEC A-A-55459-SBNOM CertifiedUL 498/943 File No. E48380
NEMA Configuration
5-20R
Color
Black
Self-Testing
Yes
Voltage
125VAC
Tamper Resistant
Yes
Power Indicator
Yes
Type
Standard Duplex
Surge Suppression
No
Wiring Method
Back and Side
Outlet Type
Decorator
Application Environment
Commercial
Amps
20A
HP
1.0
Reset Type
Automatic
Weather Resistant
No
Torque Range
14-18 in.-lbs
Amperage
20 A
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Operating Temperature
-35C to +66C
Grade
Residential/Commercial Specification Grade
Wire
3
Standards and Certifications
UL/CSA, NEMA WD6
At Rated Voltage
1 HP
Termination
Back & Side
Terminal Screws
Plated Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Face Material
Thermoplastic
Feature
Self-Test
Body Material
Polycarbonate
Grounding Screw
Plated Steel
Clamps
Brass
UL498
Yes
Strap Material
Galvanized Steel
NEMA
5-20R
Pole
2
CSA-C22.2 No. 144.1-06
File LR-57811
Terminal Accom.
14-10 AWG
Short Circuit Current Rating
10KA
Trip Level
Class A, 5mA plus or minus 1mA
Flammability
Rated V-2 per UL 94
CSA C22.2 No. 42
Yes
Wallplate
Included
Line Contacts
Brass Triple-Wipe
Yoke
Zinc-Plated Steel
UL 943
File E48380
Fed Spec WC-596
Yes
ANSI
C-73
Terminal Type
Back/Side Wired
NEMA Rating
NEMA 5-20R
Voltage Rating
125 V
Temperature Rating
-35 to 66 °C

Description

Slim Tamper Resistant, Weather Resistant Nema 5-20r 20a-125v @ Receptacle,20a-125v Feed-through W/ Black Test And Reset Buttons Less Mounting Screws And Washers, Less Self-Ground Clip, Less Wallplate And Wallplate Screw.ears Removed From Strap-Black
