Shop MOLEX

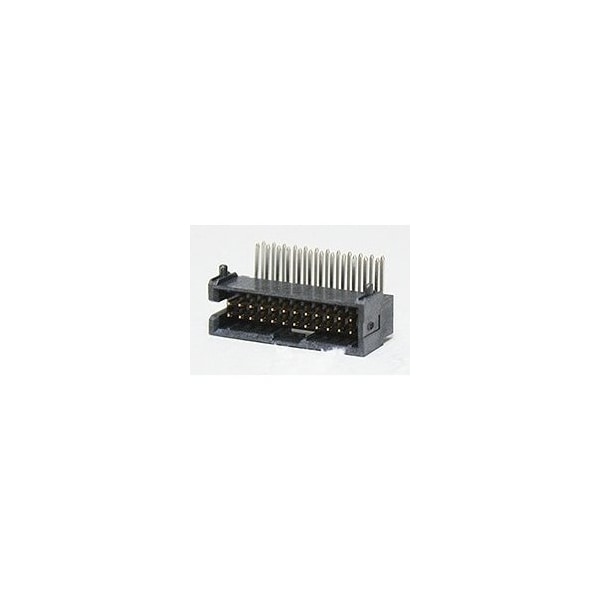

Slimgrid Shrd Hdr RA T/H 0.05AuLF 24Ckt

  • Mfr # 201021-2024

  • Zoro # G2748904

product price:  $3.15
/ea
Sold in multiples of 35 for $110.25

Key Features

Material - Metal
Copper Alloy
Material - Plating Mating
Gold
Duration at Max. Process Temperature (seconds)
10
Orientation
Right Angle
Process Temperature max. C
260
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
201021-2024
Zoro #
G2748904
UPC #
-
Country of Origin
Singapore

Dimensions

PCB Thickness - Recommended
3.00mm
PC Tail Length
4.00mm

Details

Material - Metal
Copper Alloy
Material - Plating Mating
Gold
Duration at Max. Process Temperature (seconds)
10
Orientation
Right Angle
Process Temperature max. C
260
Shrouded
Fully
Max. Cycles at Max. Process Temperature
1
Polarized to Mating Part
Yes
Voltage - Maximum
125V AC
Plating min - Termination
2.000µm
Pitch - Termination Interface
1.27mm
Lock to Mating Part
Yes
Material - Plating Termination
Matte Tin
Pitch - Mating Interface
1.27mm
Durability (mating cycles max)
500
Termination Interface: Style
Through Hole
PCB Retention
Yes
Circuits (maximum)
24
Polarized to PCB
Yes
PCB Locator
Yes
Circuits (Loaded)
24
Material - Resin
Liquid Crystal Polymer
Temperature Range - Operating
-55° to +105°C
Color - Resin
Black
Number of Rows
2
Plating min - Mating
0.051µm
Current - Maximum per Contact
1.4A
Guide to Mating Part
Yes
