  11. GFCI Receptacle, 20A, 125VAC, 5-20R, Brown

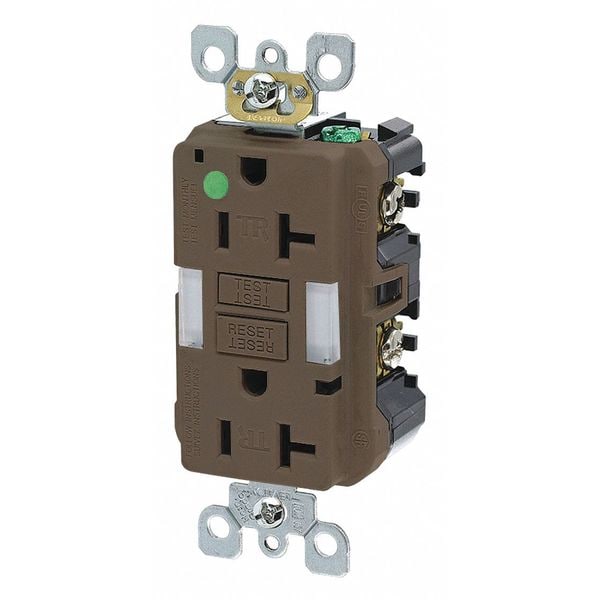

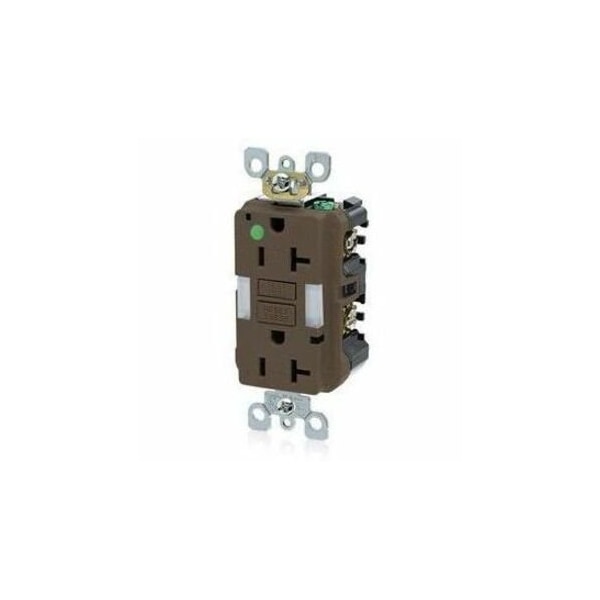

Leviton GFCI Receptacle, 20A, 125VAC, 5-20R, Brown GFNL2-HG - main

GFCI Receptacle, 20A, 125VAC, 5-20R, Brown

  • Mfr # GFNL2-HG

  • Zoro # G1658091

product price: $50.19
/ea

Key Features

Connection Orientation
Straight
Cover Type
Screw-On Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNL2-HG
Zoro #
G1658091
UPC #
078477723630
Country of Origin
China

Dimensions

Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.8 in
Overall Depth
1.4 in
Face Plate Width
1.3 in
Maximum Wire Size
12 AWG
Minimum Wire Size
14 AWG
Flange Height
4.2 in
Flange Width
1.3 in
Flange Diameter
3.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
Screw-On Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Number of Outlets
2
Housing Color
Brown
Housing Material
Polycarbonate
Mounting Type
Flush
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA, CSA C22.2 No. 42 and 144, Fed Spec W-C-596, NOM-ANCE, UL, UL 498, UL 943
NEMA Configuration
5-20R
Tamper Resistant
Yes
Outlet Type
Decorator
Color
BROWN
Surge Suppression
No
Application Environment
Hospital Grade
Voltage
125VAC
Weather Resistant
No
Wiring Method
Back, Side
Self-Testing
Yes
Amps
20A
HP
1.0
Special Features
Illuminated
Power Indicator
Yes
Reset Type
Manual
Features
Reset Lockout Mechanism Prevents Reset of the GFCI if it is Not Wired or Operating Correctly
Grade
Hospital Grade
Visual Indicator Lights
Power Connected
Resistance Properties
Tamper Resistant
Number of Wall Plates Included
0
UL 94 Flammability Rating
V-0
Horsepower Rating
1 hp
Number of Gangs
4
Self Testing
Yes
Minimum Operating Temperature
-35 Degrees C
Maximum Operating Temperature
66 Degrees C
Wire Connection Type
Screw Terminals
Voltage Rating
125V AC
Contact Material
Brass
Receptacle Type
Decorator Duplex
Reverse Service
No
Flange Shape
Square
For Location
Indoor
Flange Type
Non-Flanged
AFCI
No
Shrouded
Yes
Maximum Surge Current
6.5 kA
Surge Protection
No
Flange Material
Stainless Steel
IP Rating
Not Rated
Market
Commercial
Hub Type
Feed Through
Wall Plate Material
Not Included
Mount Type
Flush
For Environment
Industrial
Includes Mounting Hardware
Yes
Includes
Mounting Hardware
Housing Material Finish
Plain

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type Screw-On Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 4, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
