  11. GFCI Receptacle, 20A, 125Vac, 5-20R, Gray

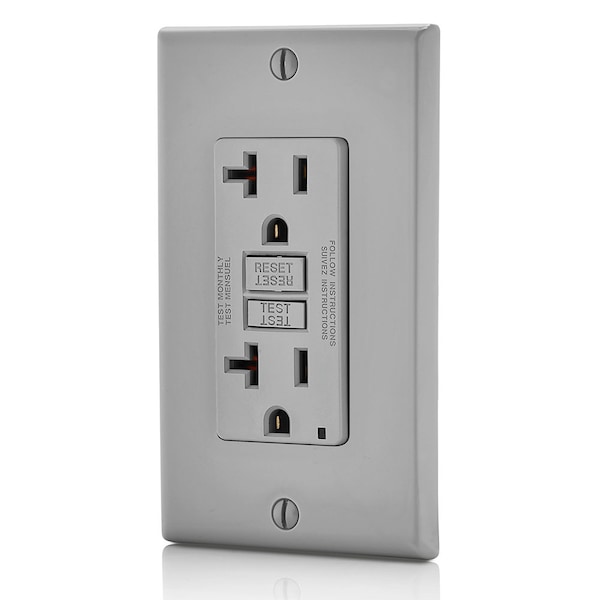

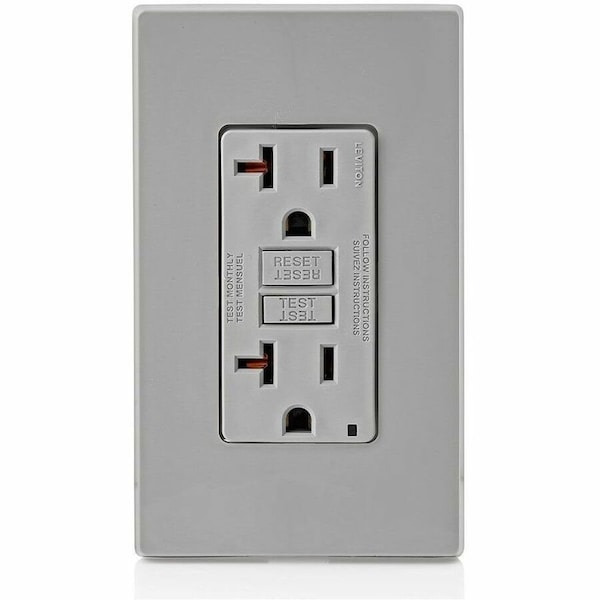

Leviton GFCI Receptacle, 20A, 125Vac, 5-20R, Gray GFNT2-GY - main

GFCI Receptacle, 20A, 125Vac, 5-20R, Gray

  • Mfr # GFNT2-GY

  • Zoro # G3897425

product price: $22.99
/ea

Key Features

Grounding
Self-Grounding
Mounting Type
Flush
Material
Polycarbonate/Thermoplastic
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNT2-GY
Zoro #
G3897425
UPC #
78477712757
Country of Origin
China

Dimensions

Height
6.2500 in
Length
9.2500 in
Dimensions
4.21 in H x 1.69 in W x 1.4 in D

Details

Item
GFCI Receptacle
Grounding
Self-Grounding
Mounting Type
Flush
Material
Polycarbonate/Thermoplastic
Number of Poles
2
Number of Wires
3
Amps
20A
Surge Suppression
No
Outlet Type
Decorator
Reset Type
Automatic
HP
1.0
Self-Testing
Yes
Wiring Method
Back and Side
Voltage
125VAC
Tamper Resistant
No
Color
Gray
Power Indicator
Yes
NEMA Configuration
5-20R
Type
Standard Duplex
Application Environment
Commercial
Weather Resistant
No
Application
Residential
ANSI
C-73
Yoke
Zinc-Plated Steel
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Wire
3
Operating Temperature
-35C to +66C
Short Circuit Current Rating
10KA
Fed Spec WC-596
Yes
Terminal Screws
Plated Steel
Terminal Accom.
14-10 AWG
UL 943
File E48380
CSA C22.2 No. 42
Yes
Termination
Back & Side
Grounding Screw
Plated Steel
Clamps
Brass
CSA-C22.2 No. 144.1-06
File LR-57811
Grade
Residential/Commercial Specification Grade
Trip Level
Class A, 5mA plus or minus 1mA
Body Material
Polycarbonate
Strap Material
Galvanized Steel
UL498
Yes
Feature
Self-Test
Pole
2
Torque Range
14-18 in.-lbs
Line Contacts
Brass Triple-Wipe .031 Thick
At Rated Voltage
1 HP
Amperage
20 A
Face Material
Thermoplastic
Standards and Certifications
UL/CSA, NEMA WD6, NEMA WD1
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
NEMA
5-20R
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Wallplate
Included
Voltage Rating
125 V
Standard
UL/CSA
Terminal Type
Back/Side Wired
Temperature Rating
-35C to +66C °C

Description

Self-Test Slim, Non-Tamper Resistant, GFCI Receptacle, Nema 5-20R, 20A-125V @ Receptacle, 20A-125V Feed-Through -Gray
