  6. GFCI Receptacle, 20A, 125Vac, 5-20R, Ivory

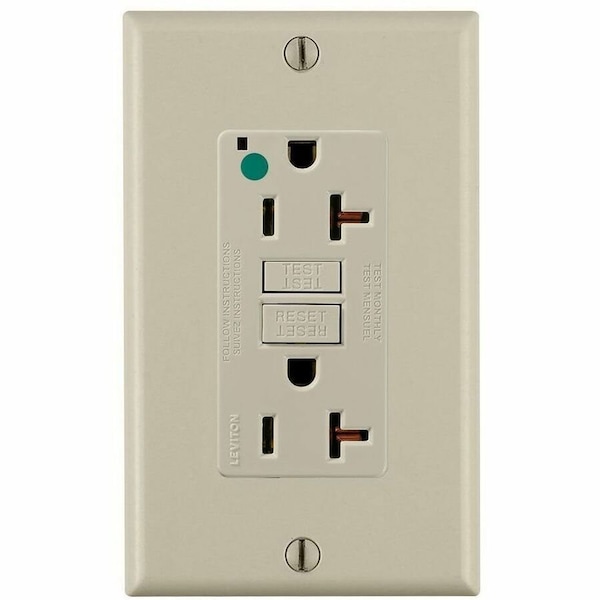

Leviton GFCI Receptacle, 20A, 125Vac, 5-20R, Ivory GFNT2-HGI - main

GFCI Receptacle, 20A, 125Vac, 5-20R, Ivory

  • Mfr # GFNT2-HGI

  • Zoro # G3836358

product price:  $38.95
/ea

Key Features

Grounding
Self-Grounding
Mounting Type
Flush
Material
Polycarbonate / PBT
Number of Poles
2
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GFNT2-HGI
Zoro #
G3836358
UPC #
78477725085
Country of Origin
China

Dimensions

Width
1.69 in
Length
2.88 in
Height
4.69 in
Dimensions
4.05 in H x 1.74 in W x 1.36 in D

Details

Item
GFCI Receptacle
Grounding
Self-Grounding
Mounting Type
Flush
Material
Polycarbonate / PBT
Number of Poles
2
Number of Wires
3
Amps
20A
Reset Type
Automatic
Voltage
125VAC
Weather Resistant
No
Self-Testing
Yes
Type
Self-test SmartLock Pro Slim GFCI
Wiring Method
Back and Side
Tamper Resistant
No
Power Indicator
Yes
Application Environment
Hospital Grade
Outlet Type
Decorator
HP
1.0
Surge Suppression
No
NEMA Configuration
5-20R
Color
Ivory
Application
Extra-Heavy Duty Hospital Grade
Operating Temperature
-35C to +66C
Screw Terminal Torque
14-18 in-lbs
Flammability
Rated V-0 per UL 94
Device Type
Duplex Receptacle Outlet
Face Material
PBT
Feature
Wallplate Included|Power Indication
Terminal Accom.
14-10 AWG solid or stranded
Strap Material
Galvanized Steel
Grounding Screw
Plated Steel
Body Material
Polycarbonate
Pole
2
Certification/Listing
UL, CSA, NOM-ANCE
Short Circuit Current Rating
10kA
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Wire
3
ANSI
C-73
Terminal Screws
Plated Steel
Terminal Clamp
Brass
Grade
Extra Heavy-Duty Hospital Grade
Line Contacts
Brass
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
NEMA
WD-1 & WD-6
Termination
Back and Side Wire
Ground Clips
Brass
Amperage
20 A
At Rated Voltage
1 HP
Function
GFCI
Voltage Rating
125 V
Temperature Rating
-35C to +66C °C
Terminal Type
Back/Side Wired

Description

20 Amp, 125 Volt, SmartlockPro Slim Self-Test GFCI Receptacle, Extra-Heavy Duty Hospital Grade, NEMA 5-20R, 20A Feed-Through, 2P, 3W, Matching Wallplate Included - IVORY
