  11. GFCI Receptacle, 20A, 125VAC, 5-20R, Ivory

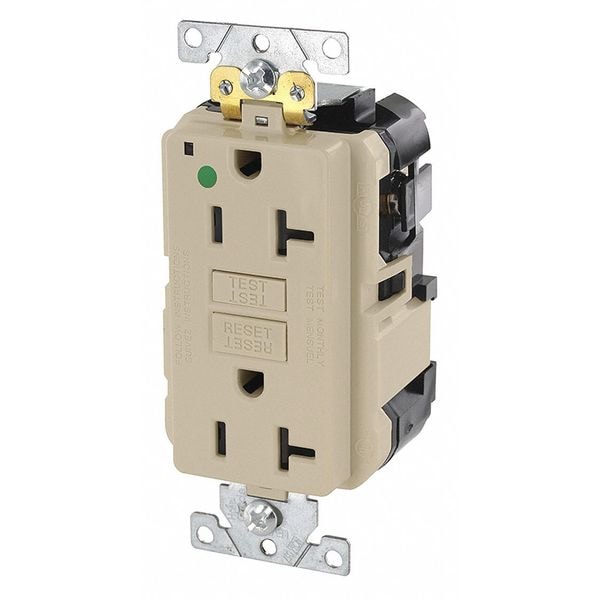

Leviton GFCI Receptacle, 20A, 125VAC, 5-20R, Ivory MGFN2-HGI - main

GFCI Receptacle, 20A, 125VAC, 5-20R, Ivory

  • Mfr # MGFN2-HGI

  • Zoro # G804392896

product price: $30.69
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MGFN2-HGI
Zoro #
G804392896
UPC #
078477724422
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.2 in

Details

Item
Modular Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Number of Outlets
2
Housing Color
Ivory
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA Certified, Federal Specification, RoHS Compliant, UL Listed
Weather Resistant - Plugs and Receptacles
No
Surge Suppression
Yes
Wiring Method
Back, Side
Tamper Resistant
No
Amps - Plugs and Receptacles
20 A
Item - Plugs and Receptacles
GFCI Receptacle
Outlet Type - Plugs and Receptacles
Duplex
Color
Ivory
HP
1 hp
Color - Plugs and Receptacles
Ivory
Power Indicator
Yes
Self-Testing
Yes
Voltage
125 VAC
Application Environment
Hospital Grade
Wiring Method - Plugs and Receptacles
Back and Side
Voltage - Plugs and Receptacles
125V
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Special Features
Circuit ID Label for Identification, Solid Brass Locking Pin
Grade
Hospital Grade Fed. Spec.
Visual Indicator Lights
Power Connected
Hub Type
Feed Through
Self Testing
Yes
UL 94 Flammability Rating
V-0
Contact Material
Brass
Wire Connection Type
Modular Wiring
Mount Type
Flush
Includes Mounting Hardware
Yes
Surge Protection
Yes
Maximum Operating Temperature
150.8 Degrees F
Voltage Rating
125V AC
Receptacle Type
Decorator Duplex
Horsepower Rating
1 hp
Minimum Operating Temperature
-31 Degrees F
NEMA
WD-1 & WD-6
Amperage
20 A
Device Type
Duplex Receptacle Outlet
Wire
3
Pole
2
ANSI
C-73
Terminal Screws
Plated Steel
Screw Terminal Torque
14-18 in-lbs
Short Circuit Current Rating
2kA
Feature 3
Power Indication
Termination
Modular (line) and Back or Side Wire (load)
Face Material
PBT
At Rated Voltage
1 HP
Flammability
Rated V-0 per UL 94
Ground Clips
Brass
Terminal Clamp
Brass
Body Material
Polycarbonate
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Strap Material
Galvanized Steel
Function
GFCI
Line Contacts
Brass
Feed-Through Current
20 Amp
Operating Temperature
-35C to +66C

Description

Modular GFCI Receptacle, Number of Poles 2, Number of Wires 3, Wiring Method Modular, Grade Hospital, Reset Type Automatic
