  11. GFCI Receptacle, 20A, 125Vac, 5-20R, White

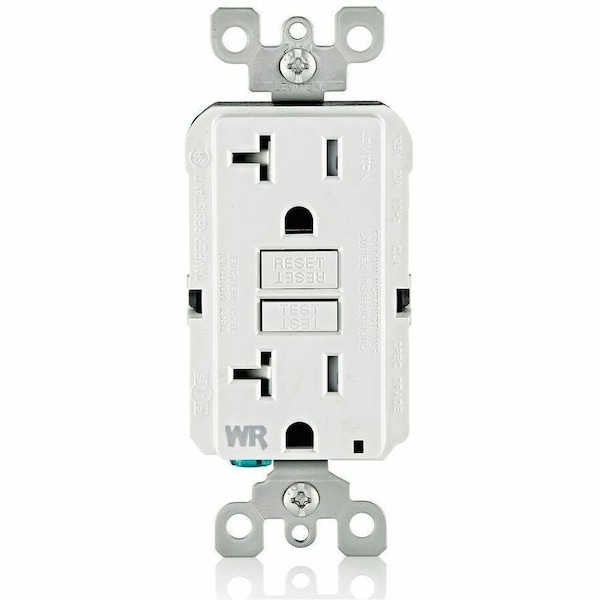

Leviton GFCI Receptacle, 20A, 125Vac, 5-20R, White GFWT2-W - main

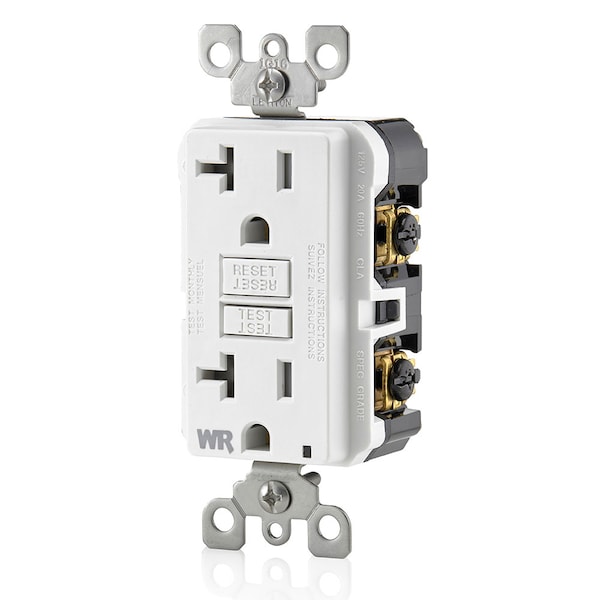

GFCI Receptacle, 20A, 125Vac, 5-20R, White

  • Mfr # GFWT2-W

  • Zoro # G3898107

product price: $28.85
/ea

Key Features

Grounding
Green Ground Screw
Mounting Type
Flush
Number of Poles
2
Number of Wires
3
Standards
ANSI C73CSA C22.2 No. 144.1-06/42 File No. LR57811Federal Specification WC596MIL-SPEC A-A-55459-SBNOM CertifiedUL 498/943 File No. E48380
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFWT2-W
Zoro #
G3898107
UPC #
78477709191
Country of Origin
China

Dimensions

Height
5.0000 in
Length
8.7500 in
Dimensions
4.21 in H x 1.69 in W x 1.4 in D

Details

Item
GFCI Receptacle
Grounding
Green Ground Screw
Mounting Type
Flush
Number of Poles
2
Number of Wires
3
Standards
ANSI C73CSA C22.2 No. 144.1-06/42 File No. LR57811Federal Specification WC596MIL-SPEC A-A-55459-SBNOM CertifiedUL 498/943 File No. E48380
Weather Resistant
Yes
NEMA Configuration
5-20R
Amps
20A
Surge Suppression
No
Type
GFCI
Power Indicator
Yes
Application Environment
Commercial
Reset Type
Automatic
Outlet Type
Decorator
Voltage
125VAC
HP
1.0
Wiring Method
Back and Side
Color
White
Self-Testing
Yes
Tamper Resistant
Yes
Yoke
Stainless Steel
Terminal Accom.
14-10 AWG
Trip Level
Class A, 5mA plus or minus 1mA
CSA-C22.2 No. 144.1-06
File LR-57811
Standards and Certifications
UL/CSA, NEMA WD6, NEMA WD1
Termination
Back & Side
Clamps
Brass
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
UL498
Yes
ANSI
C-73
Line Contacts
Brass Triple-Wipe .031 Thick
At Rated Voltage
1 HP
Wire
3
Strap Material
Stainless Steel
UL 943
File E48380
NEMA
5-20R
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Amperage
20 A
Fed Spec WC-596
Yes
Face Material
Polypropylene
Feature
Self-Test
CSA C22.2 No. 42
Yes
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Short Circuit Current Rating
10KA
Body Material
Polycarbonate
Terminal Screws
Stainless Steel
Grade
Residential/Commercial Specification Grade
Pole
2
Grounding Screw
Stainless Steel
Operating Temperature
-35C to +66C
Voltage Rating
125 V
Temperature Rating
-35 to 66 °C
Terminal Type
Back/Side Wired
NEMA Rating
NEMA 5-20R

Description

Self-Test Tamper Resistant, Weather Resistant GFCI Receptacle. Nema 5-20R 20A-125V At Receptacle, 20A-125V Feed-through - White With White Test And Reset Buttons
