  11. GFCI Receptacle, 20A, 125Vac, White

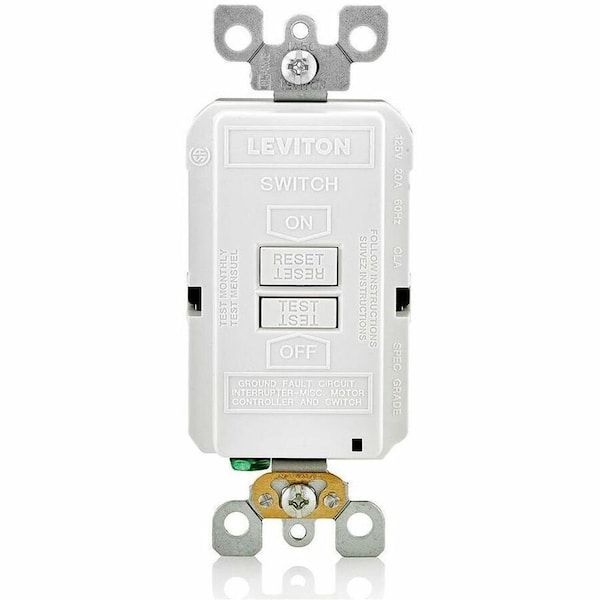

Leviton GFCI Receptacle, 20A, 125Vac, White GFRBF-W - main

GFCI Receptacle, 20A, 125Vac, White

  • Mfr # GFRBF-W

  • Zoro # G3837112

product price: $30.69
/ea

Key Features

Grounding
Self Grounding
Mounting Type
Flush
Material
Polycarbonate/Thermoplastic
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFRBF-W
Zoro #
G3837112
UPC #
78477714577
Country of Origin
China

Dimensions

Height
5.0000 in
Dimensions
4.21 in H x 1.69 in W x 1.4 in D
Length
8.7500 in

Details

Item
GFCI Receptacle
Grounding
Self Grounding
Mounting Type
Flush
Material
Polycarbonate/Thermoplastic
Number of Poles
2
Number of Wires
3
HP
1.0
Voltage
125VAC
Self-Testing
Yes
Color
White
Surge Suppression
No
Type
Blank Face
NEMA Configuration
None
Reset Type
Automatic
Wiring Method
Back and Side
Amps
20A
Tamper Resistant
No
Application Environment
Industrial
Weather Resistant
No
Power Indicator
Yes
Outlet Type
Blank Face
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Fed Spec WC-596
Yes
Short Circuit Current Rating
10KA
Torque Range
14-18 in.-lbs
Grounding Screw
Plated Steel
Feature
Self-Test
Trip Level
Class A, 5mA plus or minus 1mA
NEMA
WD-6
Terminal Accom.
14-10 AWG
CSA-C22.2 No. 144.1-06
File LR-57811
Grade
Residential/Commercial Specification Grade
Pole
2
Strap Material
Galvanized Steel
Face Material
Thermoplastic
Operating Temperature
-35C to +66C
Body Material
Polycarbonate
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Wire
3
Standards and Certifications
UL/CSA
Yoke
Zinc-Plated Steel
At Rated Voltage
1 HP
CSA C22.2 No. 42
Yes
Amperage
20 A Feed-Through
Terminal Screws
Plated Steel
Line Contacts
Brass Double-Wipe .031 Thick
Clamps
Brass
Termination
Back & Side
Feed-Through Current
20 Amp
ANSI
C-73
UL 943
File E48380
Voltage Rating
125 V
Amperage Rating
20 A
NEMA Rating
5-20R
Application
Residential
Terminal Type
Back/Side Wired
Temperature Rating
-35C to +66C °C

Description

Self-Test Blank Face GFCI, 20A-125V Feed-Through-White
