Shop LEVITON

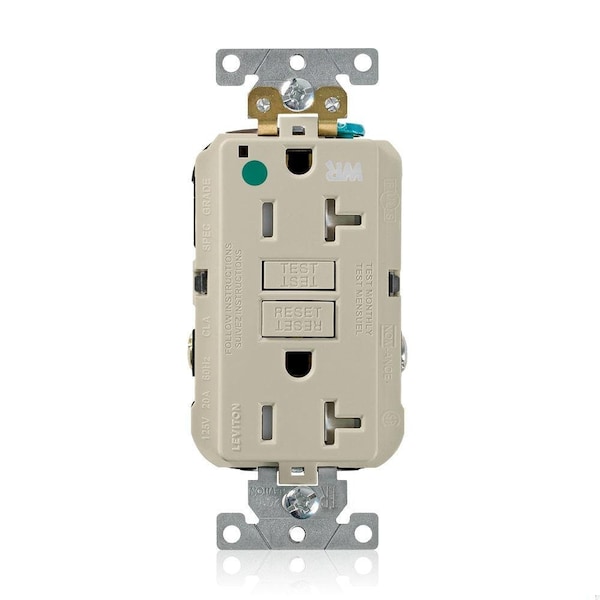

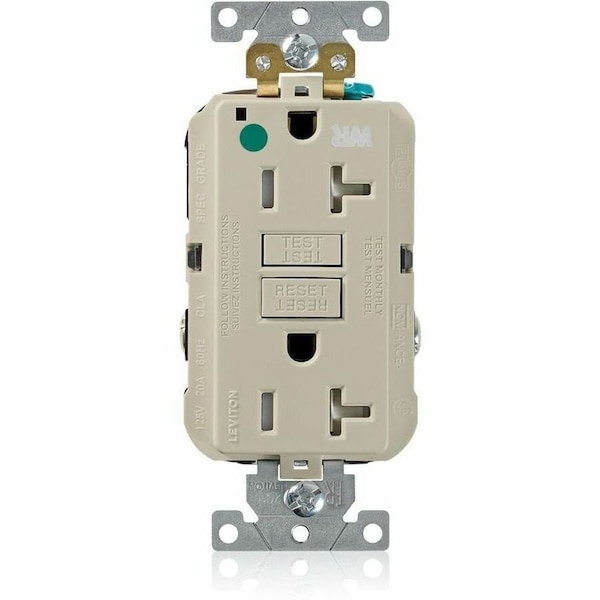

GFCI Receptacle, 5-20R, 20 A, 2 Pole, 3 Wire, Grounded

  • Mfr # GFWT2-HGI

  • Zoro # G210565808

product price:
$
42.69
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Grounding
Grounded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GFWT2-HGI
Zoro #
G210565808
UPC #
078477726259
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.4 in
Minimum Wire Size
14 AWG
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Face Plate Width
1.7 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Grounding
Grounded
Housing Color
Ivory
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI, CSA C22.2, CSA Certified, UL 498, UL 943, UL Listed
Number of Outlets
2
Reset Type
Manual
Grade
Hospital Grade
Wiring Method
Back/Side
IP Rating
Not Rated
Voltage Rating
125V AC
IEC Configuration
C73
Features
Conformal Coated PC Board to Protect Critical Components from Moisture, Designed for Wet and Damp Locations to Meet the Requirements of Nec(R) Section 406.8
For Environment
Industrial
Maximum Operating Temperature
150.8 Degrees F
Self Testing
Yes
Wire Connection Type
Screw Terminals
Number of Gangs
1
Horsepower Rating
1 hp
UL 94 Flammability Rating
V-0
Market
Commercial, Industrial, Residential
Contact Material
Brass
Phase
Single
Minimum Operating Temperature
-31 Degrees F
Includes
6 in #12 AWG TEW Line and Load Leads, Ground Wire
Resistance Properties
Tamper Resistant, Weather Resistant
Visual Indicator Lights
Power Connected
Receptacle Type
Decorator Duplex
Flange Type
Non-Flanged
AFCI
No
Surge Protection
No
Mount Type
Flush
Shrouded
Yes
Status Indicator Lights
Power Connected
Number of Wall Plates Included
0

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating 5, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant, Weather Resistant
