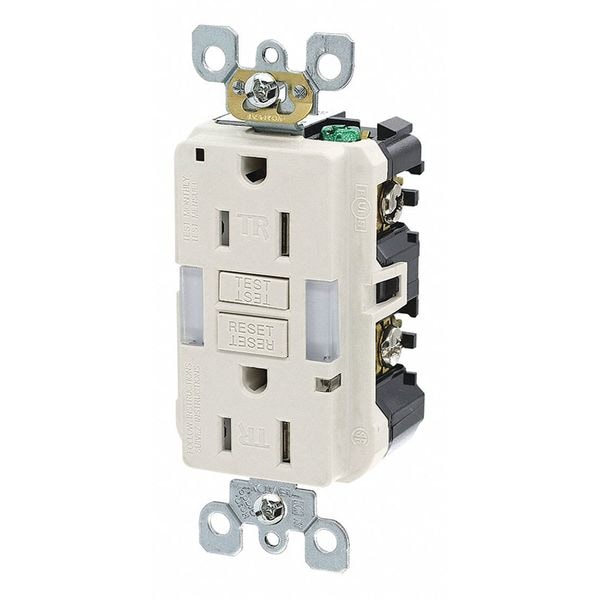

Leviton GFI Receptacle GFNL1-T - main

GFI Receptacle

  • Mfr # GFNL1-T

  • Zoro # G104392954

product price: $32.79
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNL1-T
Zoro #
G104392954
UPC #
07847771486
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Light Almond
Number of Outlets
2
Housing Material
Thermoplastic
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
Self-Testing
Yes
Type
Combination with Light
Color - Plugs and Receptacles
Light Almond
Voltage
125 VAC
Amps - Plugs and Receptacles
15 A
Outlet Type - Plugs and Receptacles
Standard Duplex
Application Environment
Commercial
Surge Suppression
Yes
Mounting Type - Plugs and Receptacles
Flush
Item - Plugs and Receptacles
GFCI Receptacle
Wiring Method
Side
Power Indicator
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Voltage - Plugs and Receptacles
125V
Color
Light Almond
Wiring Method - Plugs and Receptacles
Back and Side
Weather Resistant - Plugs and Receptacles
No
Tamper Resistant
Yes
Special Features
Auto-Monitoring, Custom Designed Lenses with Edge-Mounted LEDs, Dual Lens, Saves Space, Sensor Provides Automatic ON/OFF Illumination
HP
1 hp
Visual Indicator Lights
Power Connected
Includes
Self Grounding Clip, Strap Material
Contact Material
Brass
Includes Mounting Hardware
Yes
Features
Built-In Night Light
Self Testing
Yes
Resistance Properties
Tamper Resistant
Hub Type
Feed Through
Minimum Operating Temperature
-31 Degrees F
Maximum Operating Temperature
150.8 Degrees F
Mount Type
Flush
Horsepower Rating
1 hp
Voltage Rating
125V AC
Grade
Federal Specification
Surge Protection
Yes
Market
Commercial, Residential
Wire Connection Type
Screw Terminals
Receptacle Type
Decorator Duplex
Body Material
Thermoplastic
Fed Spec WC-596
Yes
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Wire
3
Torque Range
14-18 in.-lbs
UL 943
File E48380
Terminal Accom.
14-10 AWG
Grounding Screw
Plated Steel
Terminal Screws
Plated Steel
Termination
Back & Side 20A Feed-Thru
ANSI
C-73
At Rated Voltage
1 HP
Strap Material
Galvanized Steel
Feature
Self-Test
NEMA
5-15R
Yoke
Zinc-Plated Steel
CSA C22.2 No. 42
Yes
UL498
Yes
CSA-C22.2 No. 144.1-06
File LR-57811
Face Material
Thermoplastic
Trip Level
Class A, 5mA plus or minus 1mA
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Amperage
15 A
Clamps
Brass
Short Circuit Current Rating
10KA
Operating Temperature
-35C to +66C
Line Contacts
Brass Double-Wipe .031 Thick
Standards and Certifications
UL/CSA, NEMA WD6
Pole
2

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Light Almond, Housing Material Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
