- MFR #
- GFNL1-T
- Zoro #
- G104392954
- UPC #
- 07847771486
- Country of Origin
- China
- Item

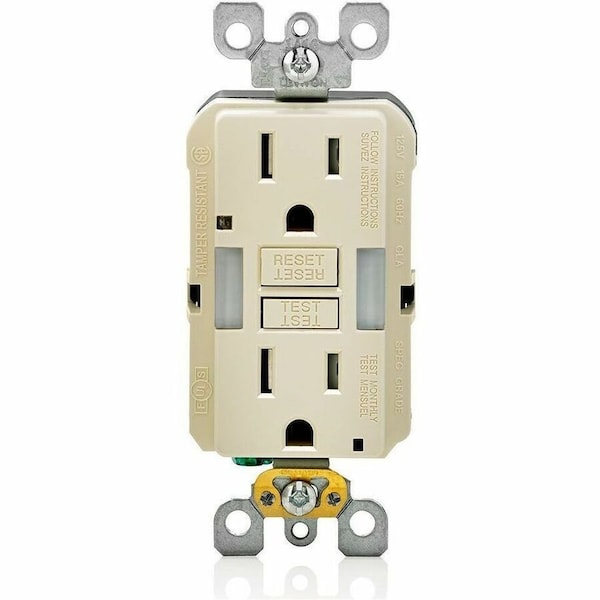

- GFI Receptacle
- Connection Orientation
- Straight
- Cover Type
- No Cover
- Current Rating
- 15 A
- Phase
- Single
- GFCI
- Yes
- Grounding
- Grounded
- Housing Color
- Light Almond
- Number of Outlets
- 2
- Housing Material
- Thermoplastic
- NEMA Receptacle Configuration
- 5-15R
- Number of Poles
- 2
- Number of Wires
- 3
- Polarized
- Yes
- Standards
- CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
- Self-Testing
- Yes
- Type
- Combination with Light
- Color - Plugs and Receptacles
- Light Almond
- Voltage
- 125 VAC
- Amps - Plugs and Receptacles
- 15 A
- Outlet Type - Plugs and Receptacles
- Standard Duplex
- Application Environment
- Commercial
- Surge Suppression
- Yes
- Mounting Type - Plugs and Receptacles
- Flush
- Item - Plugs and Receptacles
- GFCI Receptacle
- Wiring Method
- Side
- Power Indicator
- Yes
- NEMA Receptacle Configuration - Plugs and Receptacles
- 5-15R
- Voltage - Plugs and Receptacles
- 125V
- Color
- Light Almond
- Wiring Method - Plugs and Receptacles
- Back and Side
- Weather Resistant - Plugs and Receptacles
- No
- Tamper Resistant
- Yes
- Special Features
- Auto-Monitoring, Custom Designed Lenses with Edge-Mounted LEDs, Dual Lens, Saves Space, Sensor Provides Automatic ON/OFF Illumination
- HP
- 1 hp
- Visual Indicator Lights
- Power Connected
- Includes
- Self Grounding Clip, Strap Material
- Contact Material
- Brass
- Includes Mounting Hardware
- Yes
- Features
- Built-In Night Light
- Self Testing
- Yes
- Resistance Properties
- Tamper Resistant
- Minimum Operating Temperature
- -31 Degrees F
- Maximum Operating Temperature
- 150.8 Degrees F
- Mount Type
- Flush
- Horsepower Rating
- 1 hp
- Voltage Rating
- 125V AC
- Grade
- Federal Specification
- Surge Protection
- Yes
- Market
- Commercial, Residential
- Wire Connection Type
- Screw Terminals
- Receptacle Type
- Decorator Duplex
- Body Material
- Thermoplastic
- Fed Spec WC-596
- Yes
- Temperature Rise
- Max 30C after 100 cycles OL at 150 percent rated current
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Wire
- 3
- Torque Range
- 14-18 in.-lbs
- UL 943
- File E48380
- Terminal Accom.
- 14-10 AWG
- Grounding Screw
- Plated Steel
- Terminal Screws
- Plated Steel
- Termination
- Back & Side 20A Feed-Thru
- ANSI
- C-73
- At Rated Voltage
- 1 HP
- Strap Material
- Galvanized Steel
- Feature
- Self-Test
- NEMA
- 5-15R
- Yoke
- Zinc-Plated Steel
- CSA C22.2 No. 42
- Yes
- UL498
- Yes
- CSA-C22.2 No. 144.1-06
- File LR-57811
- Face Material
- Thermoplastic
- Trip Level
- Class A, 5mA plus or minus 1mA
- Dielectric Voltage
- Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Amperage
- 15 A
- Clamps
- Brass
- Short Circuit Current Rating
- 10KA
- Operating Temperature
- -35C to +66C
- Line Contacts
- Brass Double-Wipe .031 Thick
- Standards and Certifications
- UL/CSA, NEMA WD6
- Pole
- 2
- IP Rating
- Not Rated
- Flange Type
- Non-Flanged
- AFCI
- No
- Number of Gangs
- 1
- Number of Wall Plates Included
- 0
- NEMA Enclosure Rating
- Not Rated
- Status Indicator Lights
- Power Connected
- Shrouded
- No
