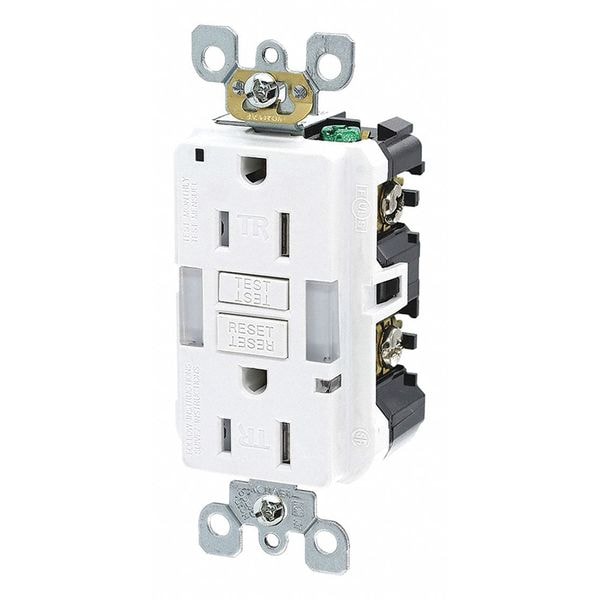

Leviton GFI Receptacle GFNL1-W - main

GFI Receptacle

  • Mfr # GFNL1-W

  • Zoro # G104392930

product price: $35.95
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNL1-W
Zoro #
G104392930
UPC #
07847771483
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Number of Outlets
2
Housing Color
White
Housing Material
Thermoplastic
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Mounting Type - Plugs and Receptacles
Flush
Self-Testing
Yes
Weather Resistant - Plugs and Receptacles
No
Special Features
Auto-Monitoring, Custom Designed Lenses with Edge-Mounted LEDs, Dual Lens, Saves Space, Sensor Provides Automatic ON/OFF Illumination
HP
1 hp
Amps - Plugs and Receptacles
15 A
Color
White
Surge Suppression
Yes
Wiring Method
Side
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Commercial
Item - Plugs and Receptacles
GFCI Receptacle
Voltage - Plugs and Receptacles
125V
Type
Combination with Light
Voltage
125 VAC
Outlet Type - Plugs and Receptacles
Standard Duplex
Power Indicator
Yes
Tamper Resistant
Yes
Color - Plugs and Receptacles
White
Hub Type
Feed Through
Horsepower Rating
1 hp
Voltage Rating
125V AC
Self Testing
Yes
Features
Built-In Night Light
Contact Material
Brass
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-31 Degrees F
Maximum Operating Temperature
150.8 Degrees F
Surge Protection
Yes
Mount Type
Flush
Visual Indicator Lights
Power Connected
Receptacle Type
Decorator Duplex
Includes
Strap Material
Market
Commercial, Residential
Resistance Properties
Tamper Resistant
Includes Mounting Hardware
Yes
Grade
Federal Specification
CSA-C22.2 No. 144.1-06
File LR-57811
Torque Range
14-18 in.-lbs
CSA C22.2 No. 42
Yes
Terminal Accom.
14-10 AWG
ANSI
C-73
Termination
Back & Side 20A Feed-Thru
Trip Level
Class A, 5mA plus or minus 1mA
Clamps
Brass
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
NEMA
5-15R
At Rated Voltage
1 HP
Strap Material
Galvanized Steel
Operating Temperature
-35C to +66C
UL 943
File E48380
Line Contacts
Brass Double-Wipe .031 Thick
Body Material
Thermoplastic
Grounding Screw
Plated Steel
Short Circuit Current Rating
10KA
Terminal Screws
Plated Steel
Standards and Certifications
UL/CSA, NEMA WD6, NEMA WD1
Fed Spec WC-596
Yes
Feature
Self-Test
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Yoke
Zinc-Plated Steel
Amperage
15 A
Pole
2
Wire
3
UL498
Yes
Face Material
Thermoplastic

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color White, Housing Material Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
