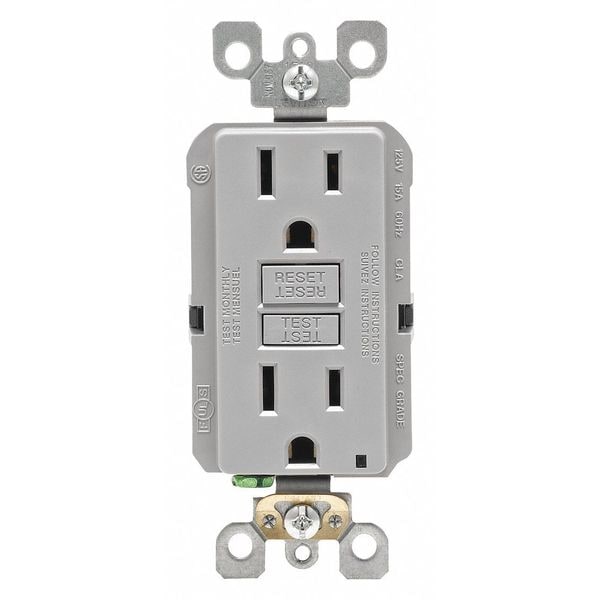

Leviton GFI Receptacle GFNT1-GY - main

GFI Receptacle

  • Mfr # GFNT1-GY

  • Zoro # G004393044

product price: $17.75
/ea

Key Features

Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNT1-GY
Zoro #
G004393044
UPC #
07847771256
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Number of Outlets
2
Housing Color
Gray
Housing Material
Polycarbonate
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Application Environment
Commercial
Tamper Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Surge Suppression
Yes
HP
1 hp
Type
Standard Duplex
Voltage
125 VAC
Weather Resistant - Plugs and Receptacles
No
Item - Plugs and Receptacles
GFCI Receptacle
Color
Gray
Self-Testing
Yes
Outlet Type - Plugs and Receptacles
Standard Duplex
Voltage - Plugs and Receptacles
125V
Wiring Method
Side
Power Indicator
Yes
Amps - Plugs and Receptacles
15 A
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type - Plugs and Receptacles
Flush
Color - Plugs and Receptacles
Gray
Market
Commercial, Residential
Contact Material
Brass
Horsepower Rating
1 hp
Receptacle Type
Decorator Duplex
Self Testing
Yes
Visual Indicator Lights
Power Connected
Maximum Operating Temperature
150.8 Degrees F
Minimum Operating Temperature
-31 Degrees F
Voltage Rating
125V AC
Hub Type
Feed Through
Surge Protection
No
Grade
Federal Specification
Wire Connection Type
Screw Terminals
Features
Built-In Night Light
Mount Type
Flush
Includes Mounting Hardware
Yes
Includes
Strap Material
Standards and Certifications
UL/CSA, NEMA WD6, NEMA WD1
Face Material
Thermoplastic
Strap Material
Galvanized Steel
Trip Level
Class A, 5mA plus or minus 1mA
Feature
Self-Test
Clamps
Brass
NEMA
5-15R
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Short Circuit Current Rating
10KA
UL498
Yes
Wire
3
ANSI
C-73
Pole
2
CSA C22.2 No. 42
Yes
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
At Rated Voltage
1 HP
Amperage
15 A
Terminal Accom.
14-10 AWG
Line Contacts
Brass Double Wipe .031 Thick
Operating Temperature
-35C to +66C
Termination
Back & Side
Fed Spec WC-596
Yes
Grounding Screw
Plated Steel
Wallplate
Included
Body Material
Polycarbonate
CSA-C22.2 No. 144.1-06
File LR-57811
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Torque Range
14-18 in.-lbs
Yoke
Zinc-Plated Steel
Terminal Screws
Plated Steel

Description

GFI Receptacle, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Gray, Housing Material Polycarbonate, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
