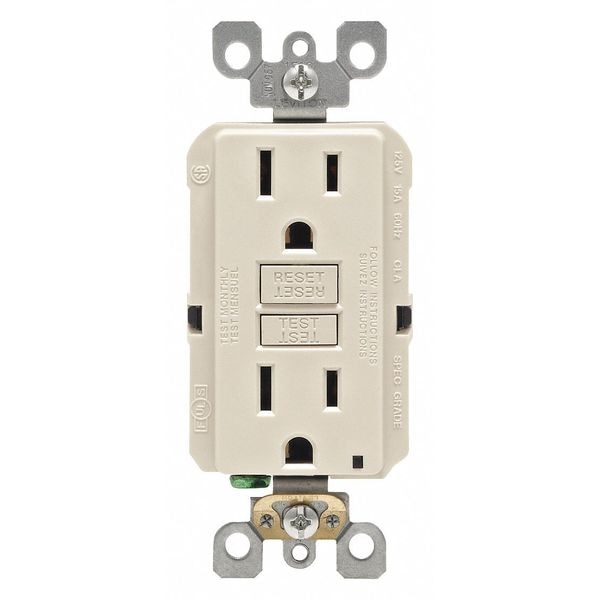

Leviton GFI Receptacle GFNT1-T - main

GFI Receptacle

  • Mfr # GFNT1-T

  • Zoro # G804392926

product price: $17.54
/ea

Key Features

Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
Grounding
Grounded
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNT1-T
Zoro #
G804392926
UPC #
07847771274
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Light Almond
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Surge Suppression
Yes
Amps - Plugs and Receptacles
15 A
Power Indicator
Yes
Weather Resistant - Plugs and Receptacles
No
Application Environment
Commercial
Voltage - Plugs and Receptacles
125V
Voltage
125 VAC
Self-Testing
Yes
Color - Plugs and Receptacles
Light Almond
Wiring Method
Back, Side
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Mounting Type - Plugs and Receptacles
Flush
Color
Light Almond
Tamper Resistant
No
Item - Plugs and Receptacles
GFCI Receptacle
HP
1 hp
Type
Standard Duplex
Outlet Type - Plugs and Receptacles
Standard Duplex
Surge Protection
No
Maximum Operating Temperature
150.8 Degrees F
Market
Commercial
Mount Type
Flush
Voltage Rating
125V AC
Contact Material
Brass
Minimum Operating Temperature
-31 Degrees F
Wire Connection Type
Screw Terminals
Grade
Federal Specification
Self Testing
Yes
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Receptacle Type
Decorator Duplex
Hub Type
Feed Through
Visual Indicator Lights
Power Connected
Includes
Faceplate, Nylon Wallplate
Trip Level
Class A, 5mA plus or minus 1mA
Body Material
Polycarbonate
Short Circuit Current Rating
10KA
At Rated Voltage
1 HP
UL498
Yes
Termination
Back & Side
Grounding Screw
Plated Steel
Pole
2
Torque Range
14-18 in.-lbs
Amperage
15 A
Wire
3
Wallplate
Included
Feature
Self-Test
CSA C22.2 No. 42
Yes
Strap Material
Galvanized Steel
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Terminal Accom.
14-10 AWG
Face Material
Thermoplastic
Standards and Certifications
UL/CSA, NEMA WD6
NEMA
5-15R
Operating Temperature
-35C to +66C
Line Contacts
Brass Double Wipe .031 Thick
ANSI
C-73
Terminal Screws
Plated Steel
Fed Spec WC-596
Yes
CSA-C22.2 No. 144.1-06
File LR-57811
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Clamps
Brass
Yoke
Zinc-Plated Steel
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06

Description

GFI Receptacle, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Light Almond, Housing Material Polycarbonate, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
