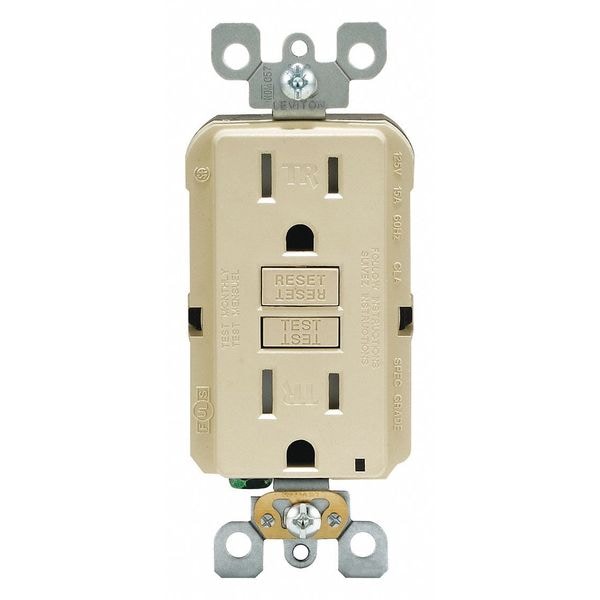

Leviton GFI Receptacle GFTR1-I - main

GFI Receptacle

  • Mfr # GFTR1-I

  • Zoro # G804392803

product price: $19.89
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTR1-I
Zoro #
G804392803
UPC #
07847748713
Country of Origin
China

Dimensions

Overall Depth
1 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.8 in
Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Face Plate Height
2.7 in

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Ivory
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI, CSA Certified, Federal Specification, MIL-SPEC, NOM Certified, RoHS Compliant, UL Listed
Application Environment
Commercial
Surge Suppression
Yes
Weather Resistant - Plugs and Receptacles
No
Color - Plugs and Receptacles
Ivory
Wiring Method
Back, Side
Self-Testing
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
HP
1 hp
Wiring Method - Plugs and Receptacles
Back and Side
Voltage - Plugs and Receptacles
125V
Outlet Type - Plugs and Receptacles
Standard Duplex
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Mounting Type - Plugs and Receptacles
Flush
Voltage
125 VAC
Tamper Resistant
Yes
Item - Plugs and Receptacles
GFCI Receptacle
Type
Standard Duplex
Amps - Plugs and Receptacles
15 A
Reset Type
Automatic
Color
Ivory
Power Indicator
Yes
Wire Connection Type
Screw Terminals
UL 94 Flammability Rating
V-2
Mount Type
Flush
Contact Material
Brass
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Reverse Service
Yes
Resistance Properties
Tamper Resistant
Visual Indicator Lights
Power Connected
Minimum Operating Temperature
-31 Degrees F
Includes
Faceplate, Screws, Self Grounding Clip, Wallplate
Maximum Operating Temperature
150.8 Degrees F
Surge Protection
No
Voltage Rating
125V AC
Self Testing
Yes
Market
Commercial, Residential
Receptacle Type
Decorator Duplex
Grade
Federal Specification
Hub Type
Feed Through
Body Material
Polycarbonate
Clamps
Brass
UL498
Yes
Trip Level
Class A, 5mA plus or minus 1mA
Wallplate
Included
Yoke
Zinc-Plated Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Face Material
Thermoplastic
Termination
Back & Side
Feature
Self-Test
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Terminal Screws
Plated Steel
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Grounding Screw
Plated Steel
Short Circuit Current Rating
10KA
Wire
3
Fed Spec WC-596
Yes
Standards and Certifications
UL/CSA, NEMA WD6
UL 943
File E48380
Pole
2
ANSI
C-73
CSA-C22.2 No. 144.1-06
File LR-57811
Amperage
15 A
Torque Range
14-18 in.-lbs
CSA C22.2 No. 42
Yes
Line Contacts
Brass Double Wipe .031 Thick
Operating Temperature
-35C to +66C
Terminal Accom.
14-10 AWG
Flammability
Rated V-2 per UL 94
NEMA
5-15R
At Rated Voltage
1 HP
Strap Material
Galvanized Steel

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Ivory, Housing Material Polycarbonate, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant, Standards ANSI, CSA Certified, Federal Specification, MIL-SPEC, NOM Certified, RoHS Compliant, UL Listed, Voltage Rating 125V AC
