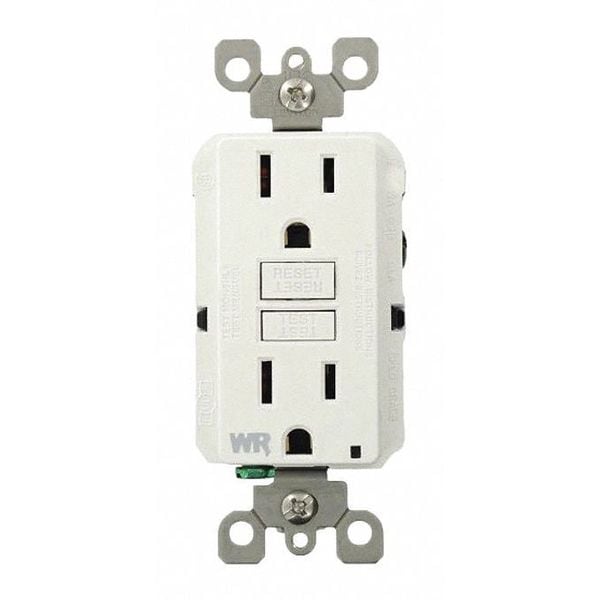

Leviton GFI Receptacle GFWR1-W - main

GFI Receptacle

  • Mfr # GFWR1-W

  • Zoro # G504393001

product price: $29.49
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFWR1-W
Zoro #
G504393001
UPC #
07847770906
Country of Origin
China

Dimensions

Overall Depth
1 in
Face Plate Width
1.3 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.8 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Number of Outlets
2
Housing Color
White
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
No
Standards
ANSI, CSA Certified, Federal Specification, MIL-SPEC, NOM Certified, RoHS Compliant, UL Listed
Tamper Resistant
No
Color
White
Outlet Type - Plugs and Receptacles
Standard Duplex
Color - Plugs and Receptacles
White
Surge Suppression
Yes
Wiring Method
Back, Side
Weather Resistant - Plugs and Receptacles
Yes
HP
1 hp
Voltage - Plugs and Receptacles
125V
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Amps - Plugs and Receptacles
15 A
Weather Resistant
Yes
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Self-Testing
Yes
Application Environment
Commercial
Power Indicator
Yes
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Reset Type
Automatic
Item - Plugs and Receptacles
GFCI Receptacle
Voltage
125 VAC
Type
GFCI
Visual Indicator Lights
Power Connected
Reverse Service
Yes
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Resistance Properties
Impact Resistant, Weather Resistant
Market
Commercial, Residential
Grade
Federal Specification
Minimum Operating Temperature
-31 Degrees F
Contact Material
Brass
Hub Type
Feed Through
Voltage Rating
125V AC
Receptacle Type
Decorator Duplex
For Location
Outdoor
Surge Protection
No
Mount Type
Flush
Self Testing
Yes
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
150.8 Degrees F
NEMA
5-15R
Trip Level
Class A, 5mA plus or minus 1mA
Pole
2
Line Contacts
Brass Double Wipe .031 Thick
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Fed Spec WC-596
Yes
Feature
Self-Test
Amperage
15 A
Operating Temperature
-35C to +66C
At Rated Voltage
1 HP
CSA-C22.2 No. 144.1-06
File LR-57811
Body Material
Polycarbonate
Standards and Certifications
UL/CSA, NEMA WD6, NEMA WD1
ANSI
C-73
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
UL 943
File E48380
Termination
Back & Side
Wire
3
Face Material
Polypropylene
Short Circuit Current Rating
10KA
UL498
Yes
Terminal Accom.
14-10 AWG
Clamps
Brass
Terminal Screws
Stainless Steel
Yoke
Stainless Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Grounding Screw
Stainless Steel
Strap Material
Stainless Steel

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color White, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Decorator Duplex, Resistance Properties Impact Resistant, Weather Resistant
